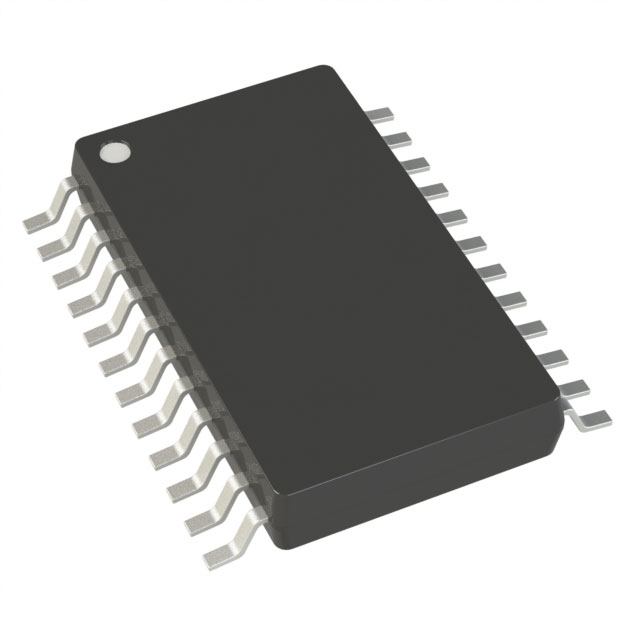

- Product Model AD5722AREZ
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC DAC 12BIT V-OUT 24TSSOP
- Classification Digital to Analog Converters (DAC)
-
PDF
Inventory:1858
Technical Details
- Package / Case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Output Type Voltage - Buffered
- Mounting Type Surface Mount
- Number of Bits 12
- Data Interface SPI, DSP
- Reference Type External
- Operating Temperature -40°C ~ 85°C
- Voltage - Supply, Analog ±4.5V ~ 16.5V
- Voltage - Supply, Digital 2.7V ~ 5.5V
- Settling Time 12µs
- Supplier Device Package 24-TSSOP-EP
- Architecture String DAC
- Number of D/A Converters 2
- INL/DNL (LSB) ±1 (Max), ±1 (Max)
- Differential Output No
- DigiKey Programmable Not Verified
