Technical Details

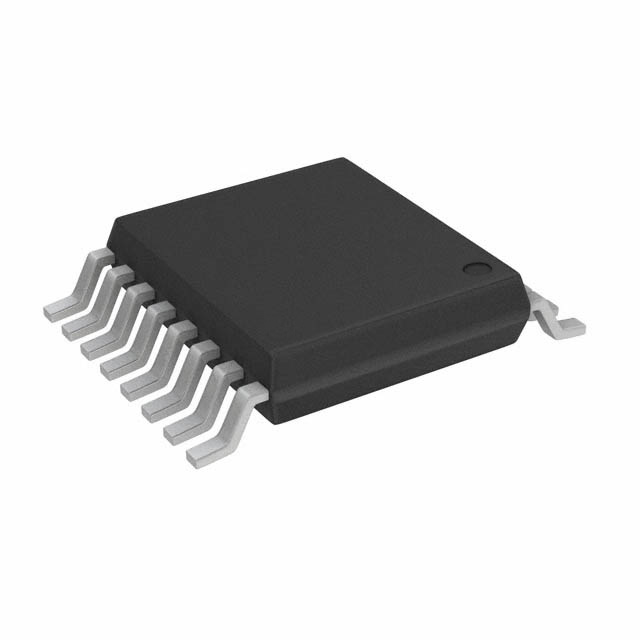

• Package / Case 16-TSSOP (0.173", 4.40mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 35Ohm
• Supplier Device Package 16-TSSOP
• Voltage - Supply, Single (V+) 5V ~ 44V
• Voltage - Supply, Dual (V±) ±5V ~ 20V
• Charge Injection 5pC
• Crosstalk -85dB @ 1MHz
• Switch Circuit SPST - NC
• Multiplexer/Demultiplexer Circuit 1:1
• Switch Time (Ton, Toff) (Max) 175ns, 145ns
• Channel Capacitance (CS(off), CD(off)) 9pF, 9pF
• Current - Leakage (IS(off)) (Max) 100pA
• Number of Circuits 4
