Technical Details

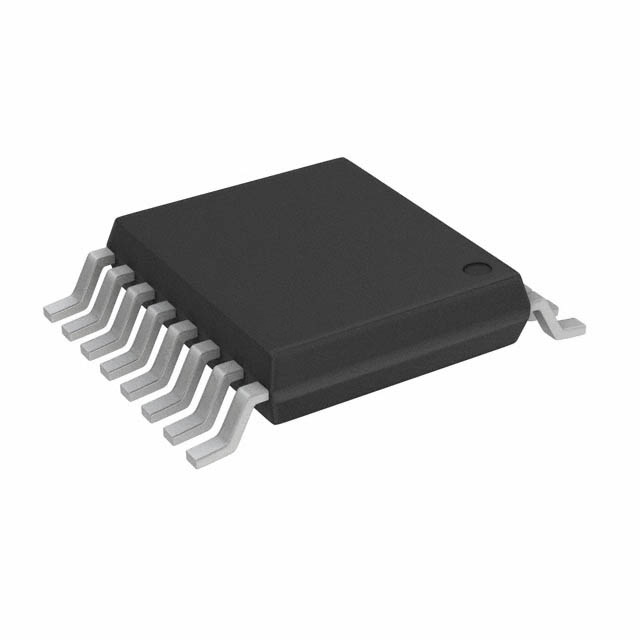

• Package / Case 16-TSSOP (0.173", 4.40mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 100Ohm
• Supplier Device Package 16-TSSOP
• Voltage - Supply, Single (V+) 2V ~ 12V
• Voltage - Supply, Dual (V±) ±2V ~ 6V
• Charge Injection 2pC
• Multiplexer/Demultiplexer Circuit 8:1
• Channel-to-Channel Matching (ΔRon) 6Ohm (Max)
• Switch Time (Ton, Toff) (Max) 50ns, 40ns
• Channel Capacitance (CS(off), CD(off)) 3pF, 21pF
• Current - Leakage (IS(off)) (Max) 2pA (Typ)
• Number of Circuits 1
