- Product Model IR2011PBF
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC GATE DRV HI-SIDE/LO-SIDE 8DIP
- Classification Gate Drivers
-
PDF
Technical Details

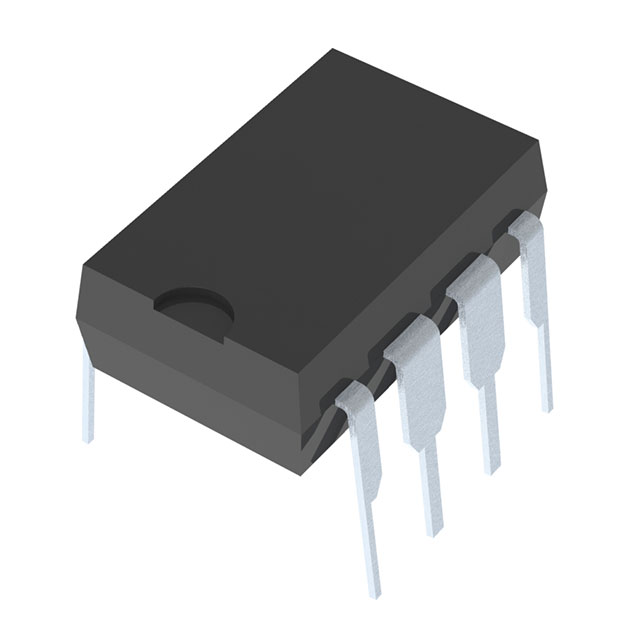

- Package / Case 8-DIP (0.300", 7.62mm)
- Mounting Type Through Hole
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 10V ~ 20V
- Input Type Inverting
- High Side Voltage - Max (Bootstrap) 200 V
- Supplier Device Package 8-PDIP
- Rise / Fall Time (Typ) 35ns, 20ns
- Channel Type Independent
- Driven Configuration High-Side or Low-Side
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.7V, 2.2V
- Current - Peak Output (Source, Sink) 1A, 1A
- DigiKey Programmable Not Verified
