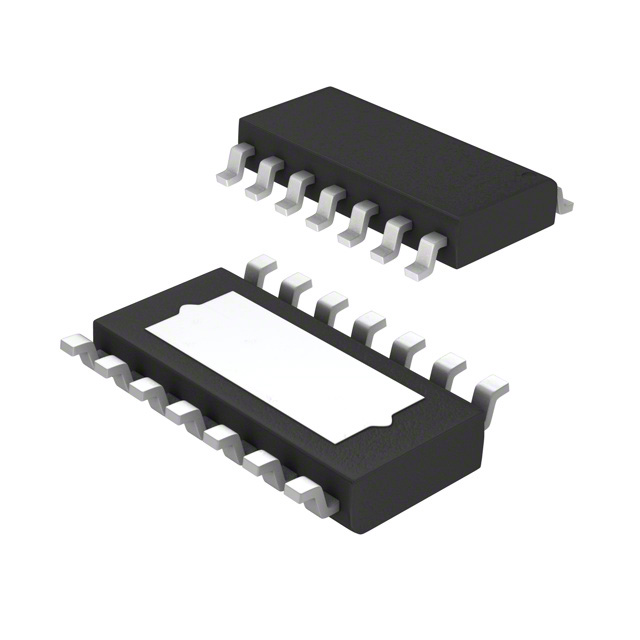

- Product Model ZXMS82090S14PQ-13
- Brand Zetex Semiconductors (Diodes Inc.)
- RoHS Yes
- Description HIGH SIDE INTELLIFET SO-14EP T&R
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Package / Case 14-SOIC (0.154", 3.90mm Width) Exposed Pad
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 2
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 75mOhm
- Input Type Non-Inverting
- Voltage - Load 5V ~ 28V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 3.5A
- Ratio - Input:Output 1:1
- Supplier Device Package 14-SO-EP
- Fault Protection Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, Reverse Battery, Short Circuit, UVLO
