- Product Model MAX25169ATM/V+
- Brand Maxim Integrated / Analog Devices
- RoHS Yes
- Description 6-CHANNEL 150MA BACKLIGHT DRIVER
- Classification LED Drivers
-
PDF
Inventory:1760
Technical Details

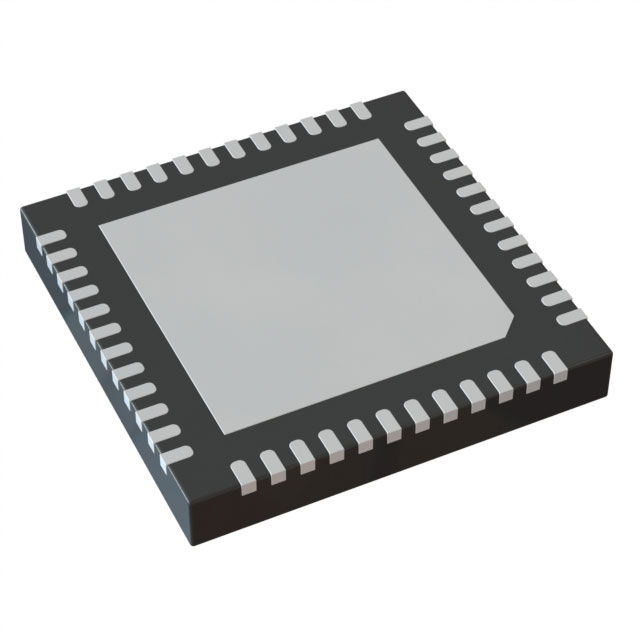

- Package / Case 48-WFQFN Exposed Pad
- Voltage - Output 18V
- Mounting Type Surface Mount
- Number of Outputs 9
- Frequency 420kHz, 2.1MHz, 400kHz ~ 2.2MHz
- Type DC DC Controller
- Operating Temperature -40°C ~ 125°C (TA)
- Applications Backlight
- Current - Output / Channel 150mA
- Internal Switch(s) Yes
- Topology SEPIC, Step-Down (Buck), Step-Up (Boost)
- Supplier Device Package 48-TQFN (7x7)
- Dimming I2C, PWM
- Voltage - Supply (Min) 2.65V, 4.5V
- Voltage - Supply (Max) 5.5V, 36V
- Grade Automotive
