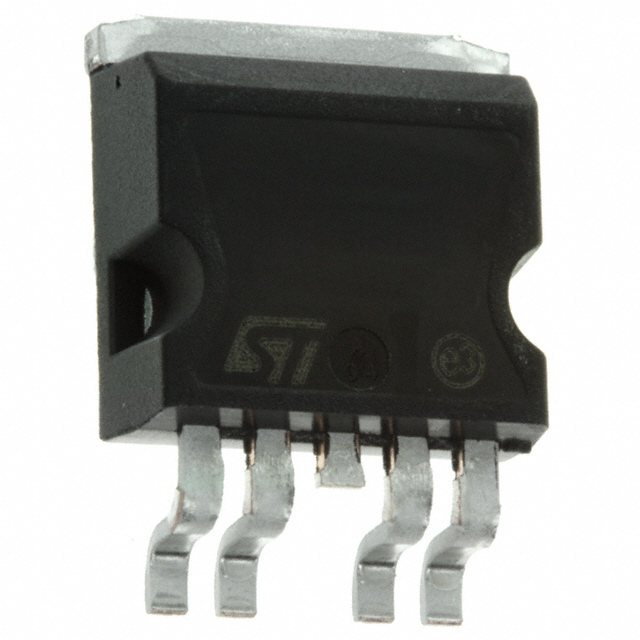

- Product Model VN820B5TR-E
- Brand STMicroelectronics
- RoHS Yes
- Description IC PWR DRIVER N-CHAN 1:1 P2PAK
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Auto Restart, Status Flag
- Package / Case P2PAK (4 Leads + Tab)
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 40mOhm (Max)
- Input Type Non-Inverting
- Voltage - Load 5.5V ~ 36V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 9A
- Ratio - Input:Output 1:1
- Supplier Device Package P2PAK
- Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
