- Product Model E-L9826TR
- Brand STMicroelectronics
- RoHS Yes
- Description IC PWR DRIVER N-CHANNEL 1:8 20SO
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details

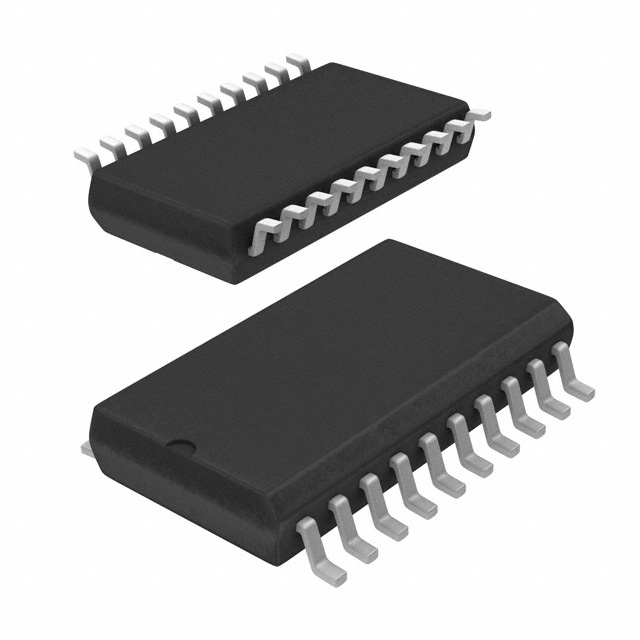

- Package / Case 20-SOIC (0.295", 7.50mm Width)
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 8
- Interface SPI
- Switch Type Latched Driver
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Low Side
- Rds On (Typ) 1.5Ohm
- Voltage - Load 45V (Max)
- Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
- Current - Output (Max) 450mA
- Ratio - Input:Output 1:8
- Supplier Device Package 20-SO
- Fault Protection Current Limiting (Fixed), Over Temperature
