- Product Model ZXGD3002E6TA
- Brand Zetex Semiconductors (Diodes Inc.)
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE SOT23-6
- Classification Gate Drivers
-
PDF
Technical Details

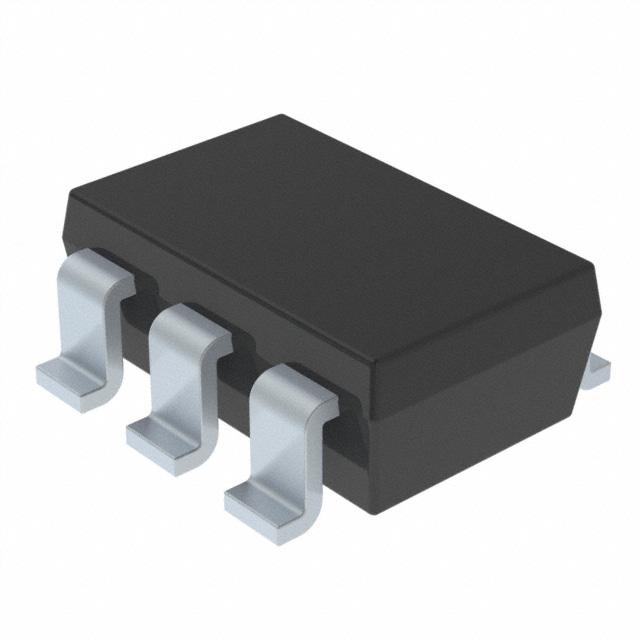

- Package / Case SOT-23-6
- Mounting Type Surface Mount
- Operating Temperature -55°C ~ 150°C (TJ)
- Voltage - Supply 20V (Max)
- Input Type Non-Inverting
- Supplier Device Package SOT-23-6
- Rise / Fall Time (Typ) 8.3ns, 10.8ns
- Channel Type Single
- Driven Configuration Low-Side
- Number of Drivers 1
- Gate Type IGBT, N-Channel MOSFET
- Current - Peak Output (Source, Sink) 9A, 9A
- DigiKey Programmable Not Verified
Related Products
IC AUTHENTICATION CHIP 8UDFN
Inventory: 16325
IC REG BUCK ADJ 600MA SOT23-THIN
Inventory: 8845
SINGLE 10-MHZ, 16-V RAIL-TO-RAIL
Inventory: 16091

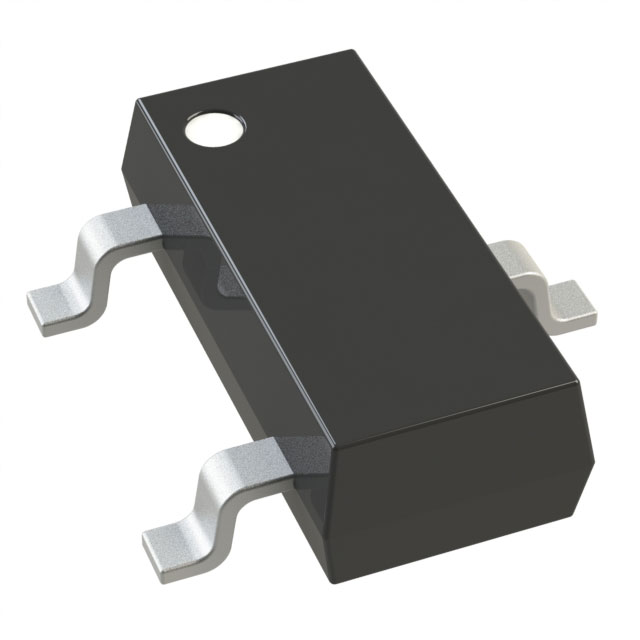

IC CURRENT MONITOR SOT23-3
