Technical Details

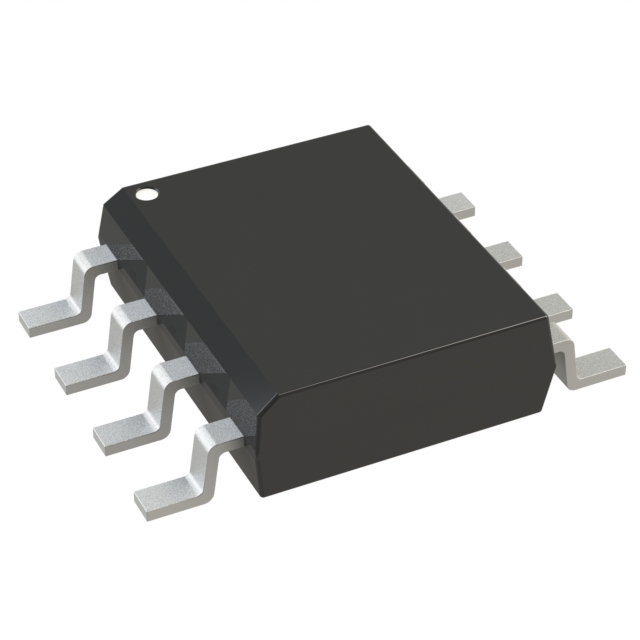

• Package / Case 8-SOIC (0.154", 3.90mm Width)
• Output Type N-Channel
• Mounting Type Surface Mount
• Number of Outputs 1
• Interface On/Off
• Switch Type General Purpose
• Operating Temperature -40°C ~ 125°C (TJ)
• Output Configuration High Side
• Rds On (Typ) 110mOhm
• Input Type Non-Inverting
• Voltage - Load 2.7V ~ 5.5V
• Voltage - Supply (Vcc/Vdd) Not Required
• Current - Output (Max) 500mA
• Ratio - Input:Output 1:1
• Supplier Device Package 8-SOIC
• Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
