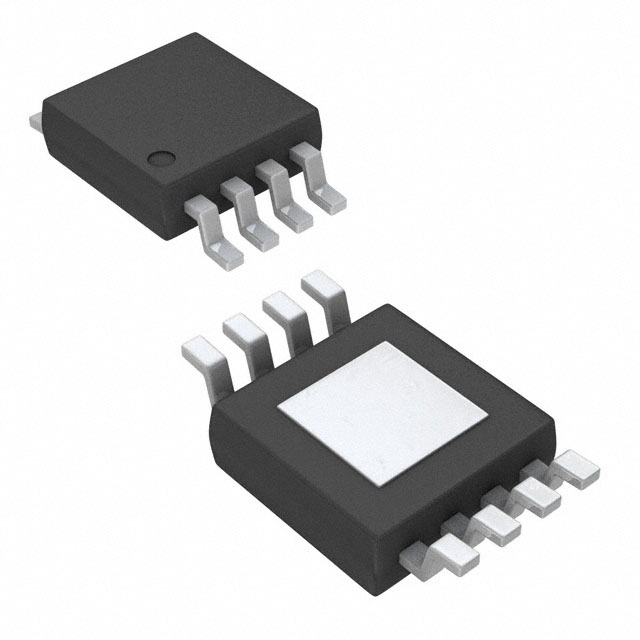

- Product Model UCC27624DGNR
- Brand Texas Instruments
- RoHS Yes
- Description 5-A/5-A DUAL-CHANNEL GATE DRIVER
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 4.5V ~ 26V
- Input Type Non-Inverting
- Supplier Device Package 8-HVSSOP
- Rise / Fall Time (Typ) 6ns, 10ns
- Channel Type Independent
- Driven Configuration Low-Side
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 1.2V, 1.8V
- Current - Peak Output (Source, Sink) 5A, 5A
