- Product Model MAX4534CSD+T
- Brand Maxim Integrated / Analog Devices
- RoHS Yes
- Description IC SWITCH SP4T X 1 400OHM 14SOIC
- Classification Analog Switches, Multiplexers, Demultiplexers
-
PDF
Technical Details

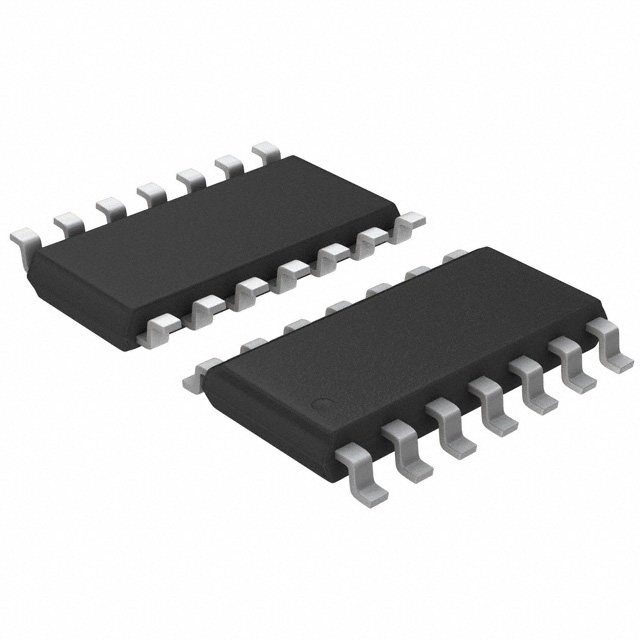

- Package / Case 14-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature 0°C ~ 70°C (TA)
- On-State Resistance (Max) 400Ohm
- Supplier Device Package 14-SOIC
- Voltage - Supply, Single (V+) 9V ~ 36V
- Voltage - Supply, Dual (V±) ±4.5V ~ 20V
- Charge Injection 1pC
- Crosstalk -53dB @ 1MHz
- Switch Circuit SP4T
- Multiplexer/Demultiplexer Circuit 4:1
- Channel-to-Channel Matching (ΔRon) 2Ohm
- Switch Time (Ton, Toff) (Max) 275ns, 200ns
- Channel Capacitance (CS(off), CD(off)) 5pF, 6.5pF
- Current - Leakage (IS(off)) (Max) 500pA
- Number of Circuits 1
