- Product Model MAX15024AATB+T
- Brand Maxim Integrated / Analog Devices
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE 10TDFN
- Classification Gate Drivers
-
PDF
Technical Details

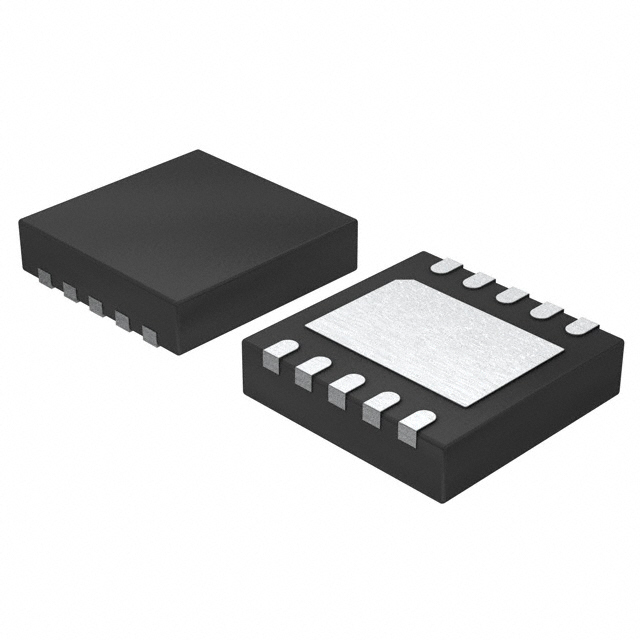

- Package / Case 10-WFDFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 4.5V ~ 28V
- Input Type Inverting, Non-Inverting
- Supplier Device Package 10-TDFN (3x3)
- Rise / Fall Time (Typ) 22ns, 16ns
- Channel Type Single
- Driven Configuration Low-Side
- Number of Drivers 1
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2V
- Current - Peak Output (Source, Sink) 4A, 8A
- Grade Automotive
- DigiKey Programmable Not Verified
- Qualification AEC-Q100
