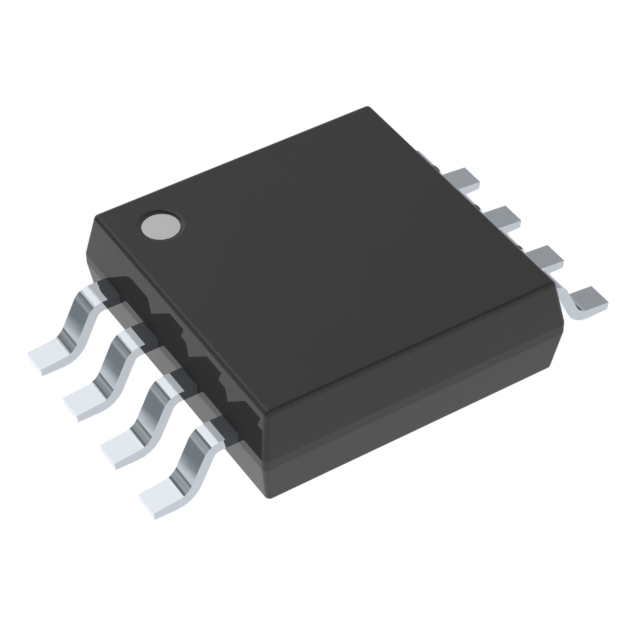

- Product Model MAX5820LEUA+T
- Brand Maxim Integrated / Analog Devices
- RoHS Yes
- Description IC DAC 8BIT V-OUT 8UMAX
- Classification Digital to Analog Converters (DAC)
-
PDF
Technical Details
- Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Output Type Voltage - Buffered
- Mounting Type Surface Mount
- Number of Bits 8
- Data Interface I2C
- Reference Type External
- Operating Temperature -40°C ~ 85°C
- Voltage - Supply, Analog 2.7V ~ 5.5V
- Voltage - Supply, Digital 2.7V ~ 5.5V
- Settling Time 12µs
- Supplier Device Package 8-uMAX/uSOP
- Architecture String DAC
- Number of D/A Converters 2
- INL/DNL (LSB) ±0.5, ±0.5 (Max)
- Differential Output No
- DigiKey Programmable Not Verified
