- Product Model MAX4704EGC+
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC SWITCH SP4T X 1 60OHM 12QFN
- Classification Analog Switches, Multiplexers, Demultiplexers
-
PDF
Technical Details

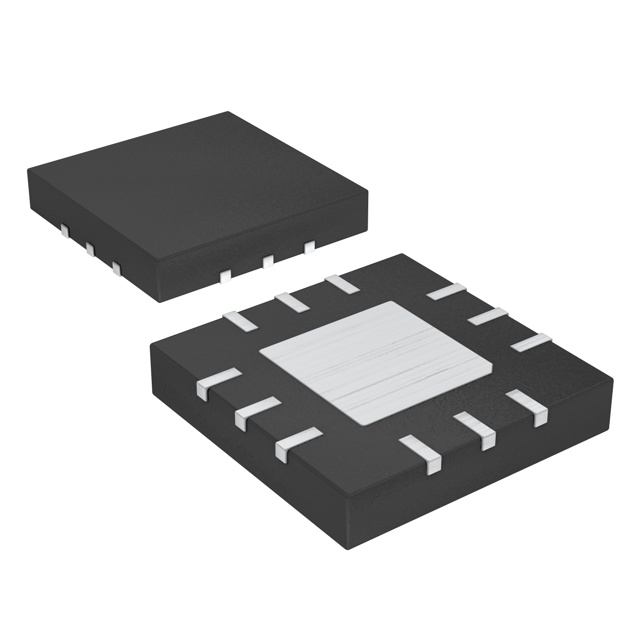

- Package / Case 12-VFQFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 85°C (TA)
- On-State Resistance (Max) 60Ohm
- -3db Bandwidth 200MHz
- Supplier Device Package 12-QFN (3x3)
- Voltage - Supply, Single (V+) 1.8V ~ 5.5V
- Charge Injection 2pC
- Crosstalk -90dB @ 1MHz
- Switch Circuit SP4T
- Multiplexer/Demultiplexer Circuit 4:1
- Channel-to-Channel Matching (ΔRon) 1Ohm
- Switch Time (Ton, Toff) (Max) 60ns, 20ns
- Channel Capacitance (CS(off), CD(off)) 7pF
- Current - Leakage (IS(off)) (Max) 100pA
- Number of Circuits 1
