- Product Model MAX536BEWE+
- Brand Maxim Integrated / Analog Devices
- RoHS Yes
- Description IC DAC 12BIT V-OUT 16SOIC
- Classification Digital to Analog Converters (DAC)
-
PDF
Technical Details

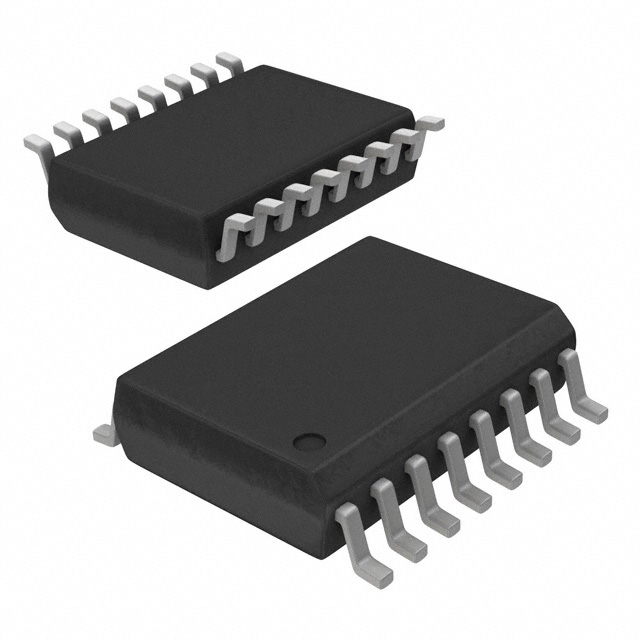

- Package / Case 16-SOIC (0.295", 7.50mm Width)
- Output Type Voltage - Buffered
- Mounting Type Surface Mount
- Number of Bits 12
- Data Interface SPI
- Reference Type External
- Operating Temperature -40°C ~ 85°C
- Voltage - Supply, Analog 10.8V ~ 13.2V, -5V
- Settling Time 3µs (Typ)
- Supplier Device Package 16-SOIC
- Architecture R-2R
- Number of D/A Converters 4
- INL/DNL (LSB) ±1 (Max), ±1 (Max)
- Differential Output No
- DigiKey Programmable Not Verified
