Technical Details

• Features Slew Rate Controlled

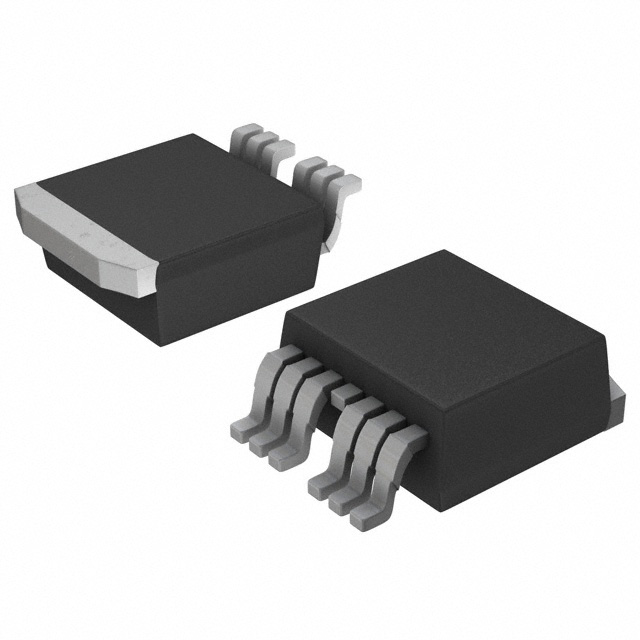

• Package / Case 8-PowerSFN
• Output Type N-Channel
• Mounting Type Surface Mount
• Number of Outputs 1
• Switch Type Relay, Solenoid Driver
• Operating Temperature -40°C ~ 150°C (TJ)
• Output Configuration High Side
• Rds On (Typ) 0.6mOhm
• Input Type Non-Inverting
• Voltage - Load 3.1V ~ 28V
• Voltage - Supply (Vcc/Vdd) 3.1V ~ 28V
• Current - Output (Max) 65A
• Ratio - Input:Output 1:1
• Supplier Device Package PG-HSOF-8-5
• Fault Protection Current Limiting (Fixed), Over Load, Over Temperature, Reverse Battery, Short Circuit, UVLO
• Grade Automotive
• Qualification AEC-Q100
