Technical Details

• Features Slew Rate Controlled
• Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
• Output Type N-Channel
• Mounting Type Surface Mount
• Number of Outputs 2
• Switch Type General Purpose
• Operating Temperature -40°C ~ 150°C (TJ)
• Output Configuration High Side
• Rds On (Typ) 50mOhm
• Input Type Non-Inverting
• Voltage - Load 2.7V ~ 28V
• Voltage - Supply (Vcc/Vdd) 2.7V ~ 28V
• Current - Output (Max) 3A
• Ratio - Input:Output 1:1

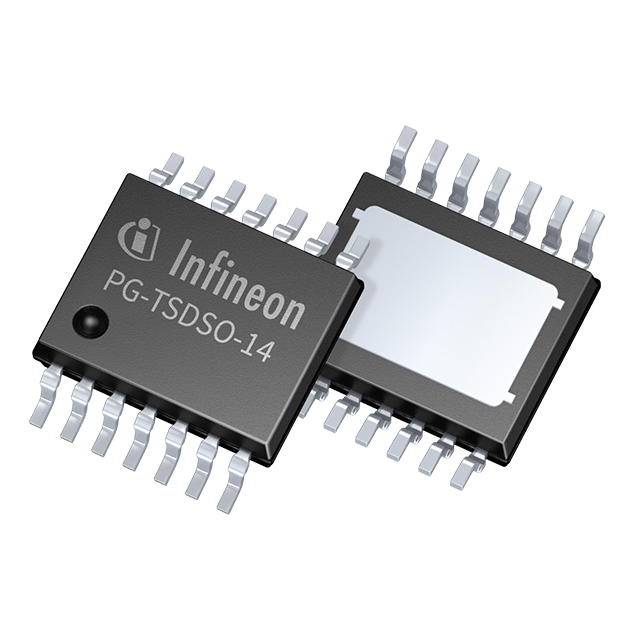

• Supplier Device Package PG-TSDSO-14
• Fault Protection Current Limiting (Fixed), Over Load, Over Temperature, Over Voltage, Reverse Battery, Short Circuit, UVLO
