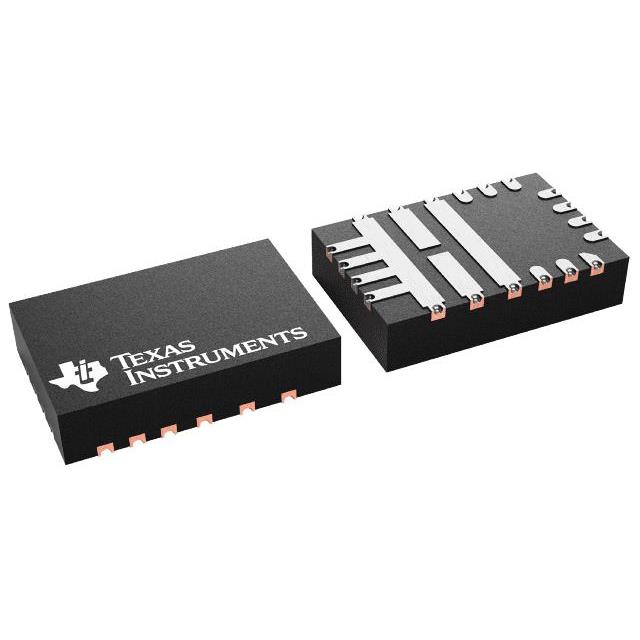

- Product Model DRV8244SQDGQRQ1
- Brand Texas Instruments
- RoHS Yes
- Description AUTOMOTIVE 40-V, 21-A H-BRIDGE D
- Classification Motor Drivers, Controllers
-
PDF
Technical Details
- Package / Case 28-PowerTSSOP (0.118", 3.00mm Width)
- Mounting Type Surface Mount
- Function Driver - Fully Integrated, Control and Power Stage
- Current - Output 21A
- Interface SPI
- Operating Temperature -40°C ~ 125°C (TA)
- Output Configuration Half Bridge (2)
- Voltage - Supply 4.5V ~ 5.5V
- Technology Power MOSFET
- Voltage - Load 4.5V ~ 35V
- Supplier Device Package 28-HTSSOP
- Motor Type - Stepper Bipolar
- Motor Type - AC, DC Brushed DC
- Grade Automotive
- Qualification AEC-Q100
