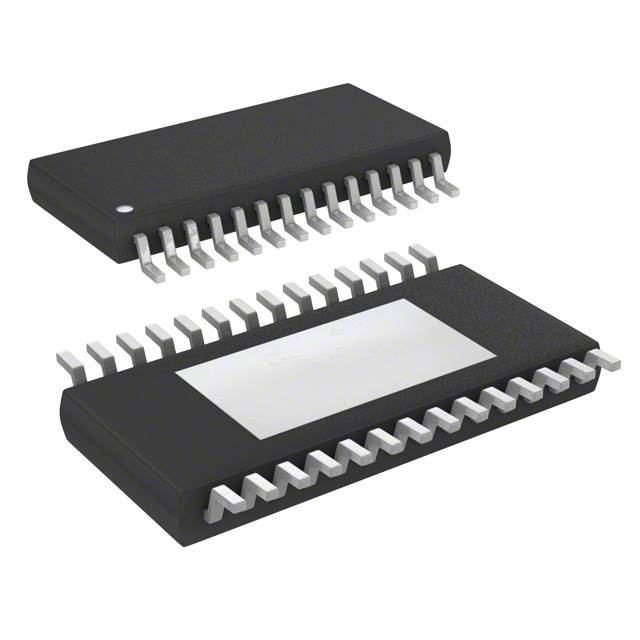

- Product Model TB6562AFG,8,EL
- Brand Toshiba Electronic Devices and Storage Corporation
- RoHS Yes
- Description IC MTR DRV BIPOLAR 10-34V 30SSOP
- Classification Motor Drivers, Controllers
-
PDF
Inventory:7915
Technical Details
- Package / Case 30-BSOP (0.295", 7.50mm Width)
- Mounting Type Surface Mount
- Function Driver - Fully Integrated, Control and Power Stage
- Current - Output 1.5A
- Interface Parallel
- Operating Temperature -20°C ~ 85°C (TA)
- Output Configuration Half Bridge (4)
- Voltage - Supply 10V ~ 34V
- Applications General Purpose
- Technology DMOS
- Voltage - Load 10V ~ 34V
- Supplier Device Package 30-SSOP
- Motor Type - Stepper Bipolar
- Step Resolution 1, 1/2, 1/4
Related Products

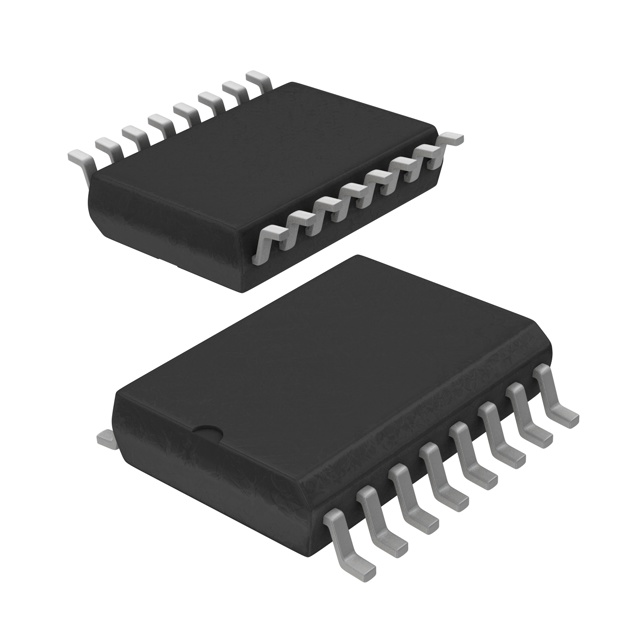

IC MTR DRV BIPOLAR 3-5.5V 16SOIC
