- Product Model VN9008AJTR
- Brand STMicroelectronics
- RoHS Yes
- Description SINGLE CHANNEL HIGH-SIDE DRIVER
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Latch Function, Status Flag

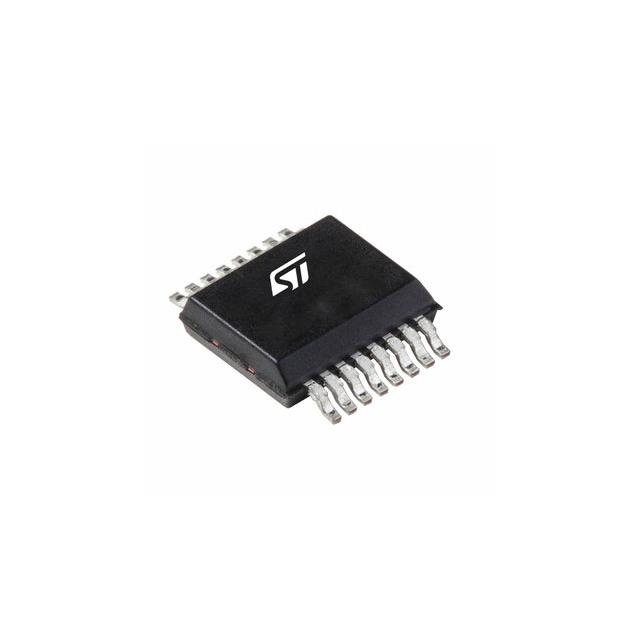

- Package / Case 16-PowerLFSOP (0.154", 3.90mm Width)
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 8mOhm
- Input Type Non-Inverting
- Voltage - Supply (Vcc/Vdd) 4V ~ 28V
- Current - Output (Max) 81.6A
- Ratio - Input:Output 1:1
- Supplier Device Package PowerSSO-16
- Fault Protection Current Limiting (Fixed), Open Load Detect, Over Load, Over Temperature, Over Voltage, Reverse Battery, UVLO
- Grade Automotive
- Qualification AEC-Q100
