- Product Model NCP5106BDR2G
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes

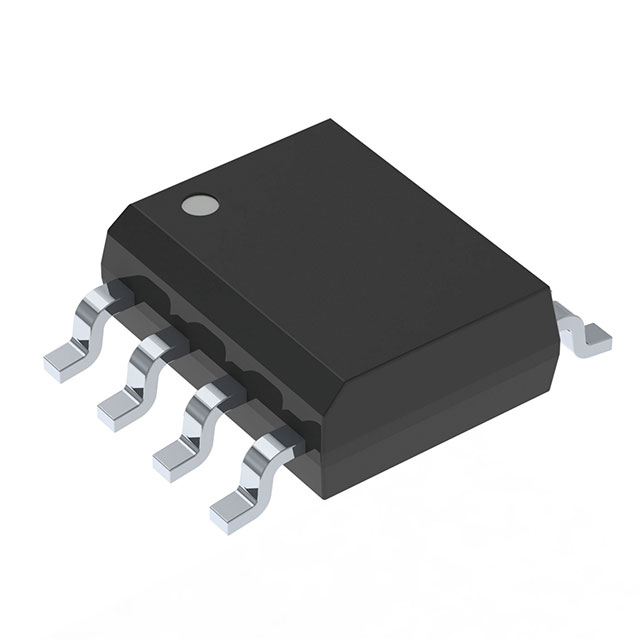

- Description IC GATE DRVR HALF-BRIDGE 8SOIC
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TJ)
- Voltage - Supply 10V ~ 20V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 600 V
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 85ns, 35ns
- Channel Type Independent
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type IGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.3V
- Current - Peak Output (Source, Sink) 250mA, 500mA
- DigiKey Programmable Not Verified
