- Product Model MCP14E3-E/SN
- Brand Roving Networks (Microchip Technology)
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE 8SOIC
- Classification Gate Drivers
-
PDF
Inventory:1675
Technical Details

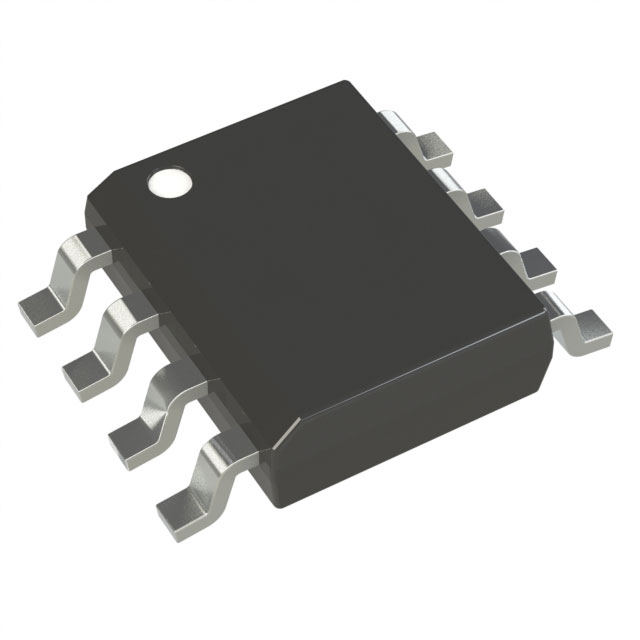

- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 4.5V ~ 18V
- Input Type Inverting
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 15ns, 18ns
- Channel Type Independent
- Driven Configuration Low-Side
- Number of Drivers 2
- Gate Type IGBT, N-Channel, P-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.4V
- Current - Peak Output (Source, Sink) 4A, 4A
- DigiKey Programmable Not Verified
