Technical Details

• Features Latch Function, Slew Rate Controlled

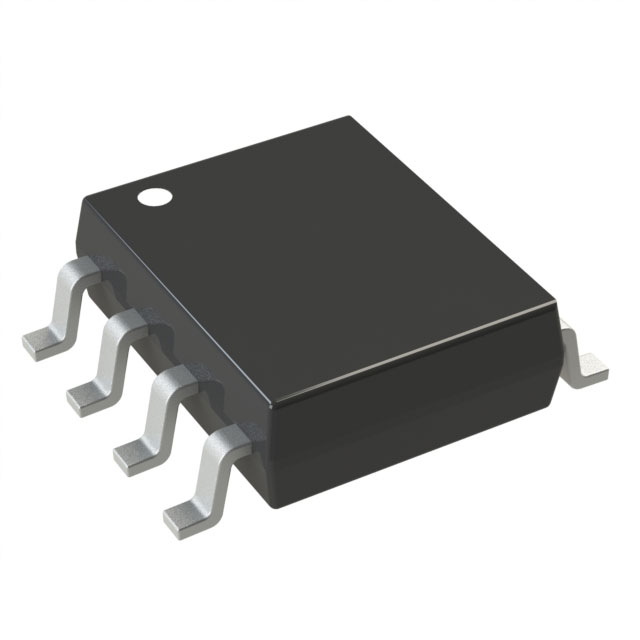

• Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
• Output Type N-Channel
• Mounting Type Surface Mount
• Number of Outputs 1
• Switch Type General Purpose
• Operating Temperature -40°C ~ 150°C
• Output Configuration High Side
• Rds On (Typ) 500mOhm
• Input Type Non-Inverting
• Voltage - Load 4V ~ 18V
• Voltage - Supply (Vcc/Vdd) Not Required
• Current - Output (Max) 1.45A
• Ratio - Input:Output 1:1
• Supplier Device Package 8-HTSOP-J
• Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Battery, Short Circuit, UVLO
• Grade Automotive
• Qualification AEC-Q100
