- Product Model NCV84090DR2G
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes
- Description 90MOHM HIGH SIDE SMARTFET
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Load Discharge, Slew Rate Controlled

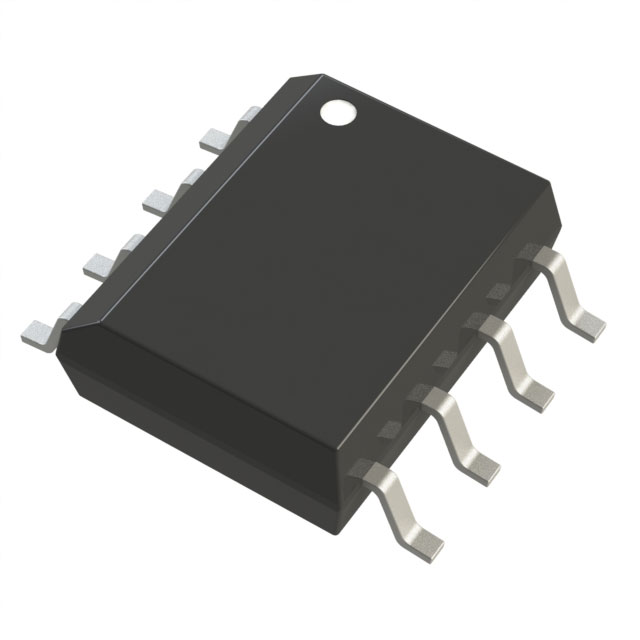

- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Output Type P-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 90mOhm
- Input Type Non-Inverting
- Voltage - Load 4V ~ 28V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 24A
- Ratio - Input:Output 1:1
- Supplier Device Package 8-SOIC
- Fault Protection Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Battery, UVLO
