- Product Model RT6585BGQW
- Brand Richtek
- RoHS Yes
- Description IC 2CH CTRLR WITH LDO WQFN-20
- Classification Voltage Regulators - Linear + Switching
-
PDF
Technical Details

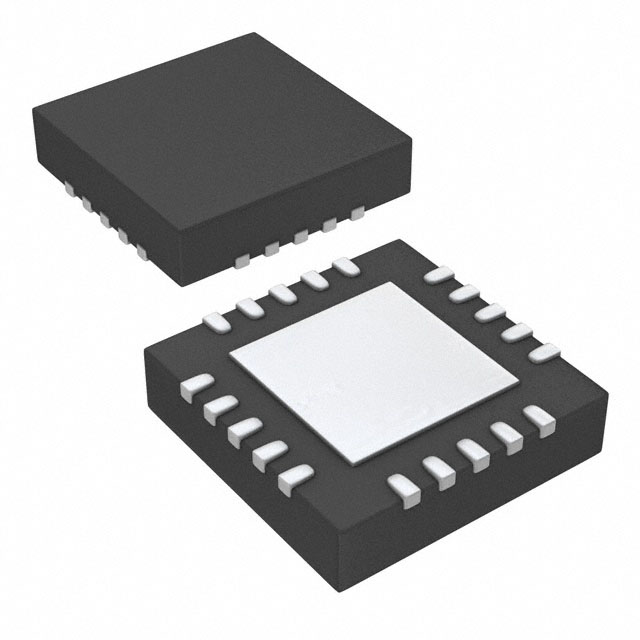

- Package / Case 20-WFQFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 85°C (TA)
- Voltage - Supply 5V ~ 25V
- Frequency - Switching 400kHz, 475kHz
- Topology Step-Down (Buck) Synchronous (2), Linear (LDO) (2)
- Supplier Device Package 20-WQFN (3x3)
- Voltage/Current - Output 1 Adjustable, Adjustable, Fixed, 2V ~ 5.5V
- Voltage/Current - Output 2 Adjustable, Adjustable, Fixed, 2V ~ 5.5V
- Voltage/Current - Output 3 Adjustable, Adjustable, Fixed, 3.3V, 100mA
- w/LED Driver No
- w/Supervisor No
- w/Sequencer Yes
- Number of Outputs 4
Related Products

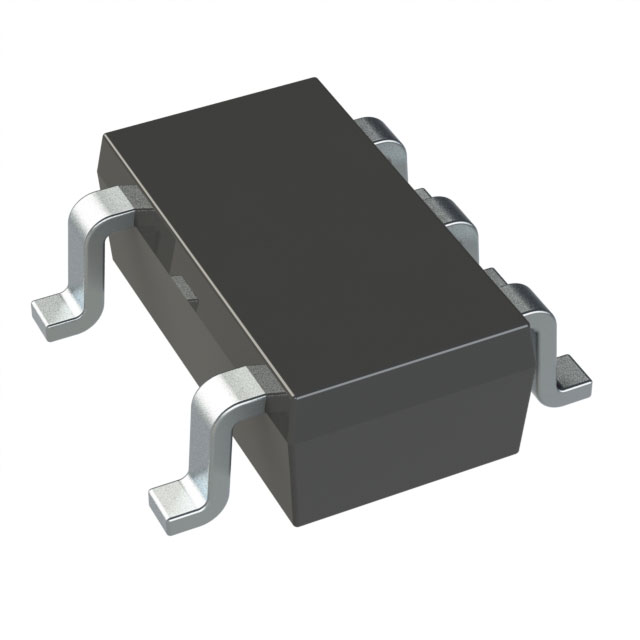

IC PWR SWITCH P-CHAN 1:1 SOT25
