- Product Model 1ED44171N01BXTSA1
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description SINGLE-CHANNEL LOW-SIDE GATE DRI
- Classification Gate Drivers
-
PDF
Technical Details

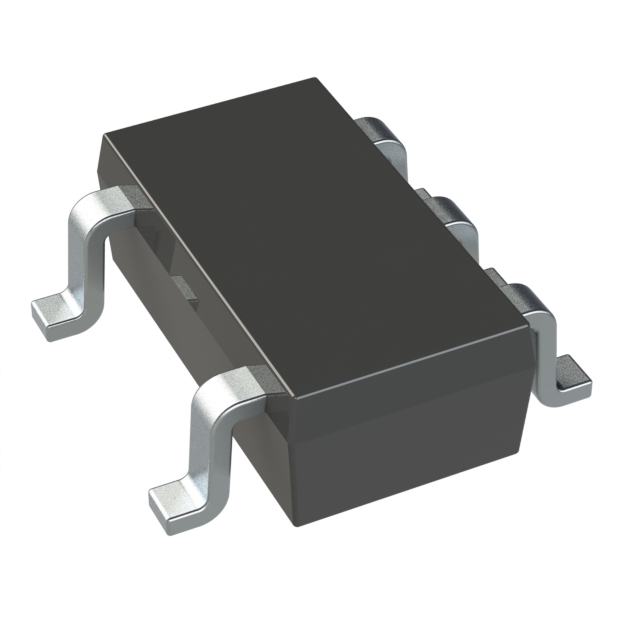

- Package / Case SC-74A, SOT-753
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 12.7V ~ 20V
- Input Type Non-Inverting
- Supplier Device Package PG-SOT23-5-1
- Rise / Fall Time (Typ) 5ns, 5ns
- Channel Type Single
- Driven Configuration Low-Side
- Number of Drivers 1
- Gate Type IGBT, N-Channel, P-Channel MOSFET
- Logic Voltage - VIL, VIH 1.2V, 1.9V
- Current - Peak Output (Source, Sink) 2.6A, 2.6A
- DigiKey Programmable Not Verified
