- Product Model 1EDB6275FXUMA1
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description DRIVER IC
- Classification Gate Drivers
-
PDF
Inventory:3890
Technical Details

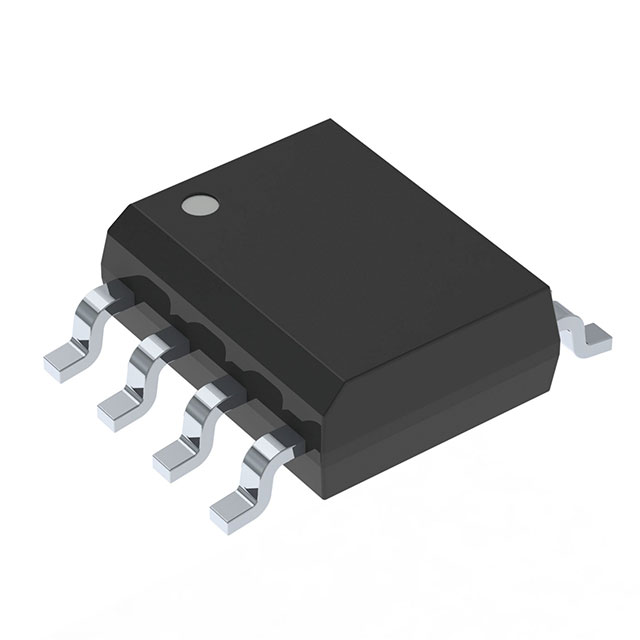

- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- Voltage - Supply 3V ~ 15V
- Input Type Non-Inverting
- Supplier Device Package PG-DSO-8-51
- Rise / Fall Time (Typ) 8.3ns, 5ns
- Channel Type Single
- Driven Configuration High-Side
- Number of Drivers 1
- Gate Type N-Channel MOSFET
- Current - Peak Output (Source, Sink) 5A, 9A
- DigiKey Programmable Not Verified
Related Products
IC IGBT DVR
Inventory: 0

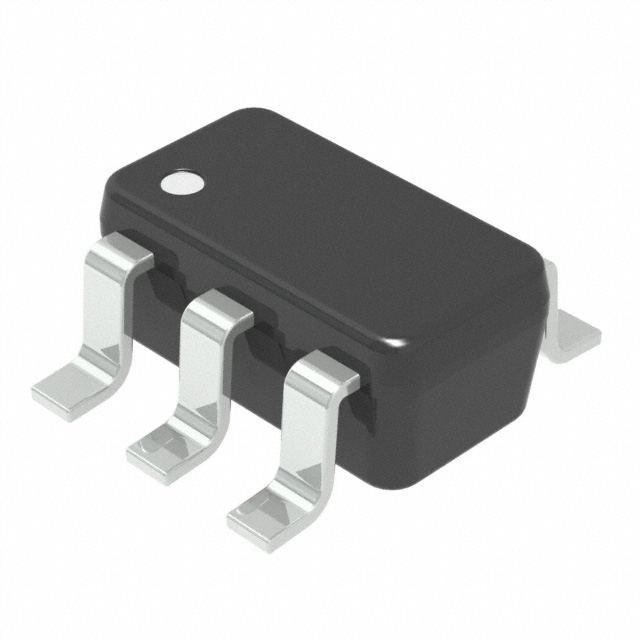

IC GATE DRVR HIGH-SIDE SOT23-6
