- Product Model MP6610GS-P
- Brand MPS (Monolithic Power Systems)
- RoHS Yes
- Description IC HALF BRIDGE DRIVER 3A 8SOIC
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Inventory:3965
Technical Details
- Features Bootstrap Circuit, Charge Pump

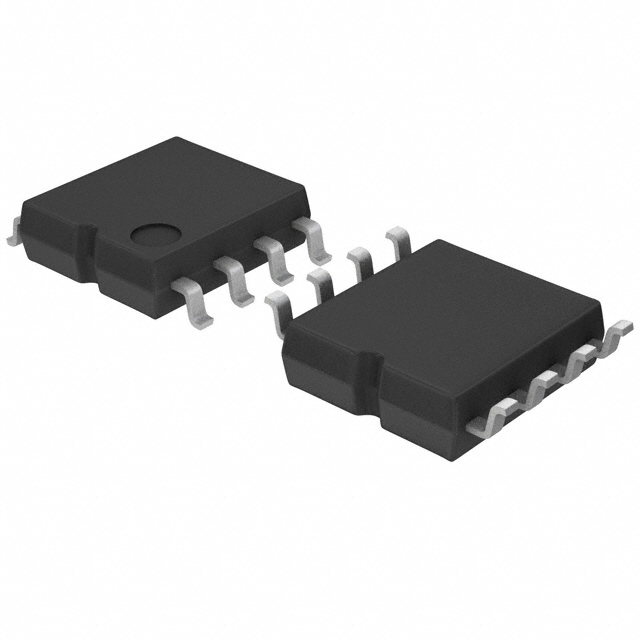

- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Interface Analog, Logic, PWM
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration Half Bridge
- Voltage - Supply 4V ~ 55V
- Rds On (Typ) 120mOhm LS, 100mOhm HS
- Applications DC Motors, General Purpose, Solenoids
- Current - Output / Channel 3A
- Current - Peak Output 3A
- Technology Power MOSFET
- Voltage - Load 4V ~ 55V
- Supplier Device Package 8-SOIC
- Fault Protection Over Current, Over Temperature, Over Voltage, UVLO
- Load Type Inductive, Capacitive, Resistive
