- Product Model DRV8256EPWPR
- Brand Texas Instruments
- RoHS Yes
- Description IC MOTOR DRIVER
- Classification Motor Drivers, Controllers
-
PDF
Technical Details

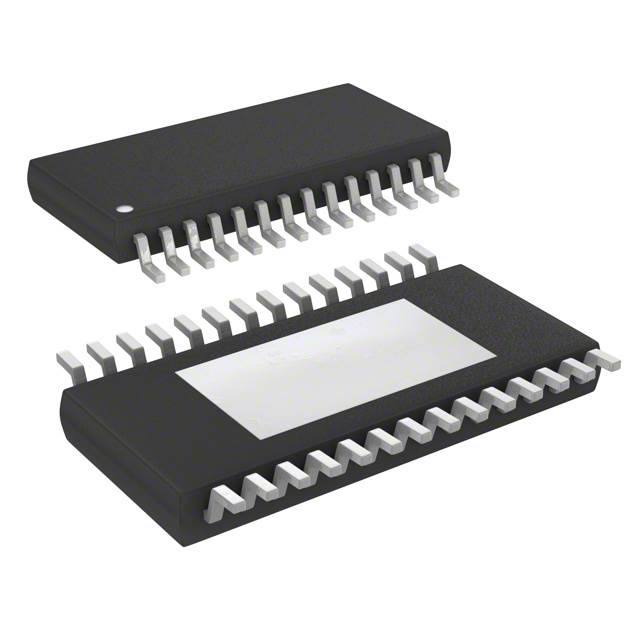

- Package / Case 28-PowerTSSOP (0.173", 4.40mm Width)
- Mounting Type Surface Mount
- Function Driver - Fully Integrated, Control and Power Stage
- Current - Output 5A
- Interface On/Off, PWM
- Operating Temperature -40°C ~ 125°C (TA)
- Output Configuration Half Bridge (2)
- Voltage - Supply 4.5V ~ 48V
- Applications Printer
- Technology NMOS
- Voltage - Load 4.5V ~ 48V
- Supplier Device Package 28-HTSSOP
- Motor Type - Stepper Bipolar, Unipolar
- Motor Type - AC, DC Brushed DC
