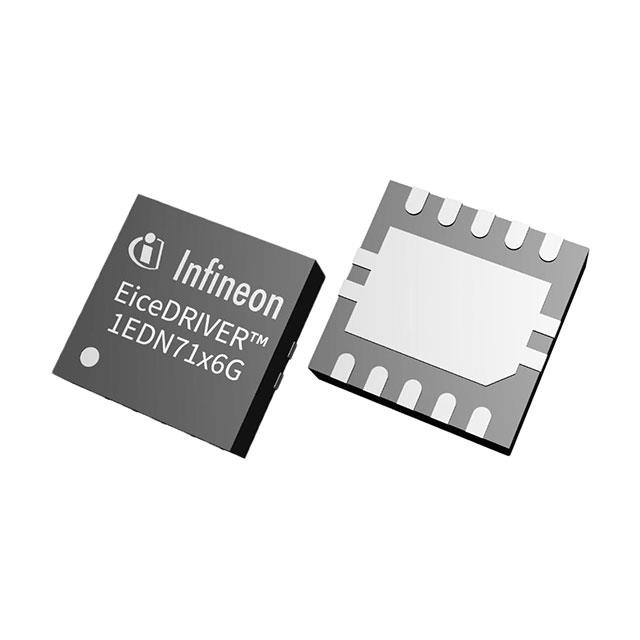

- Product Model 1EDN7116GXTMA1
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC GATE DRIVER HI/LO SIDE 10VSON
- Classification Gate Drivers
-
PDF
Inventory:9322
Technical Details
- Package / Case 10-VFDFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TJ)
- Voltage - Supply 4.2V ~ 11V
- Input Type Non-Inverting
- Supplier Device Package PG-VSON-10-4
- Rise / Fall Time (Typ) 3ns, 3ns
- Channel Type Independent
- Driven Configuration High-Side or Low-Side
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Current - Peak Output (Source, Sink) 2A, 2A
- DigiKey Programmable Not Verified
