- Product Model BTS70082EPZXUMA1
- Brand IR (Infineon Technologies)
- RoHS Yes

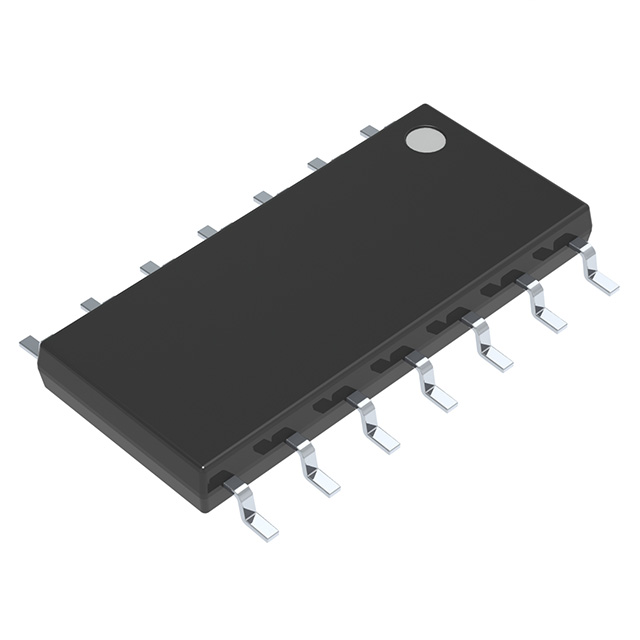

- Description PROFET PG-TSDSO-14
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Slew Rate Controlled
- Package / Case 14-SOIC (0.154", 3.90mm Width) Exposed Pad
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 2
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 175°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 9mOhm
- Input Type Non-Inverting
- Voltage - Load 6V ~ 18V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 7.5A
- Ratio - Input:Output 1:1
- Supplier Device Package PG-TDSO-14-11
- Fault Protection Over Current, Over Temperature, Over Voltage, Short Circuit
- Grade Automotive
- Qualification AEC-Q100
