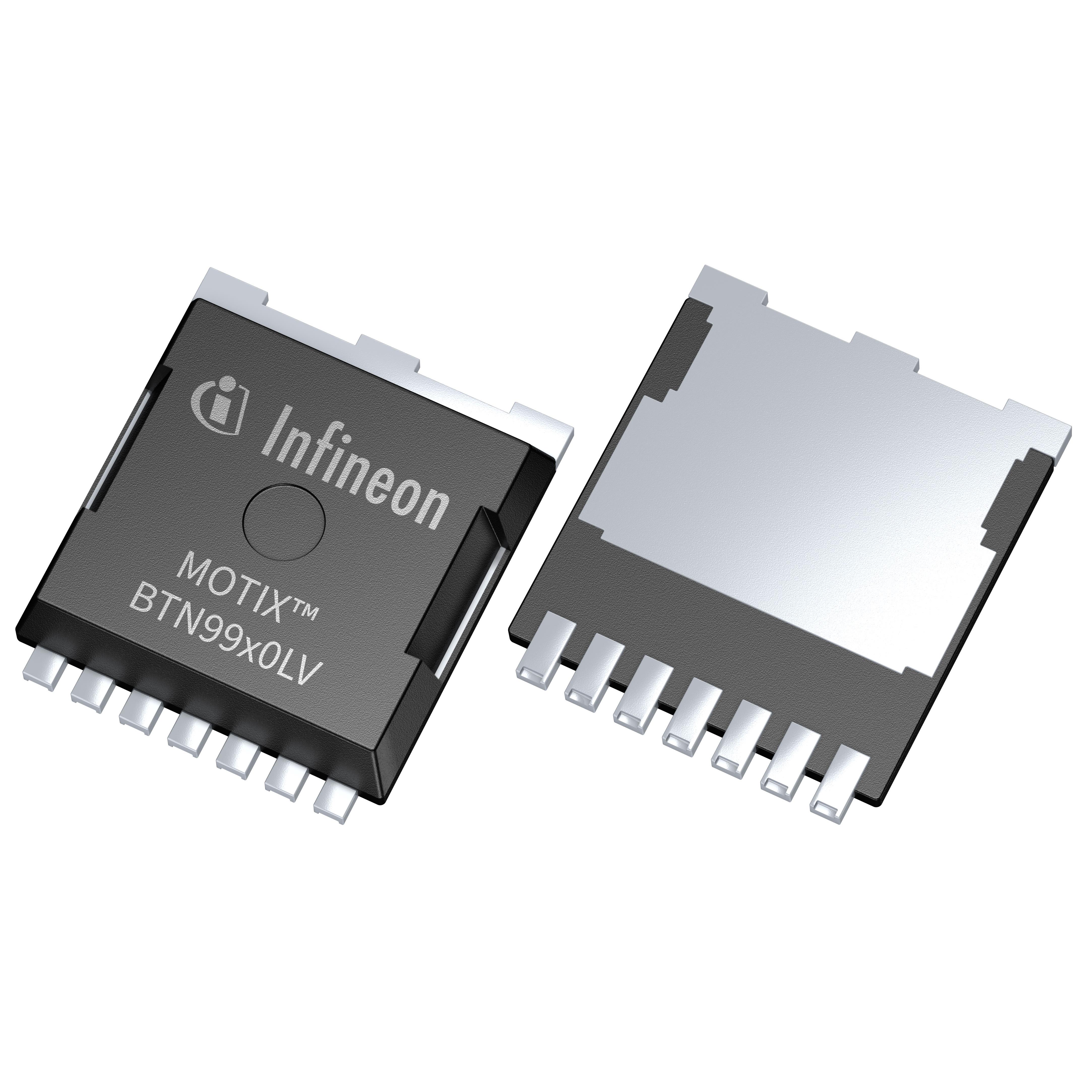

- Product Model BTN9990LVAUMA1
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC HALF BRIDGE DRIVER HSOF-7
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Charge Pump
- Package / Case 7-PowerSFN
- Mounting Type Surface Mount
- Interface Logic, PWM
- Output Configuration Half Bridge (3)
- Voltage - Supply 8V ~ 18V
- Rds On (Typ) 5.3Ohm LS, 5.3Ohm HS
- Applications DC Motors, General Purpose
- Technology MOSFET (Metal Oxide)
- Voltage - Load 8V ~ 18V
- Supplier Device Package PG-HSOF-7-1
- Fault Protection Over Current, Over Temperature, Short Circuit, UVLO
- Load Type Inductive
