- Product Model LF2184NTR
- Brand Wickmann / Littelfuse
- RoHS Yes
- Description GATE DRIVER HALF BRIDGE 1.4A
- Classification Gate Drivers
-
PDF
Inventory:14419
Technical Details

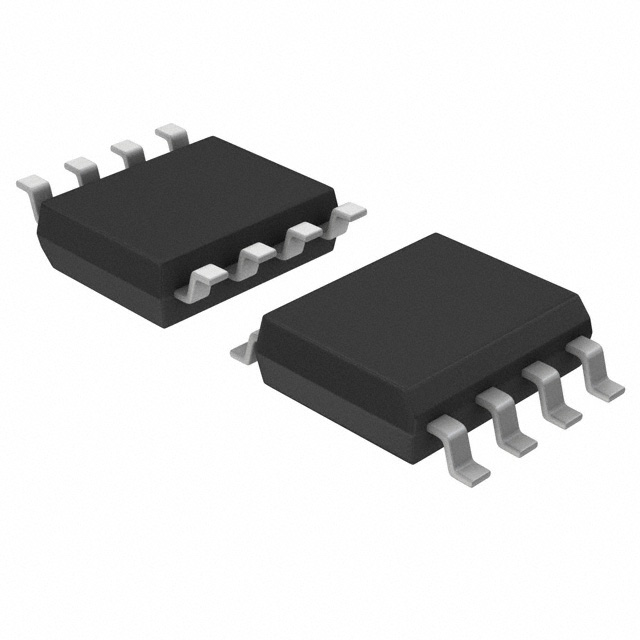

- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- Voltage - Supply 10V ~ 20V
- Input Type Inverting
- High Side Voltage - Max (Bootstrap) 600 V
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 20ns, 40ns
- Channel Type Synchronous
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type IGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.5V
- Current - Peak Output (Source, Sink) 1.9A, 2.3A
- DigiKey Programmable Not Verified
