Technical Details

• Features Open Drain

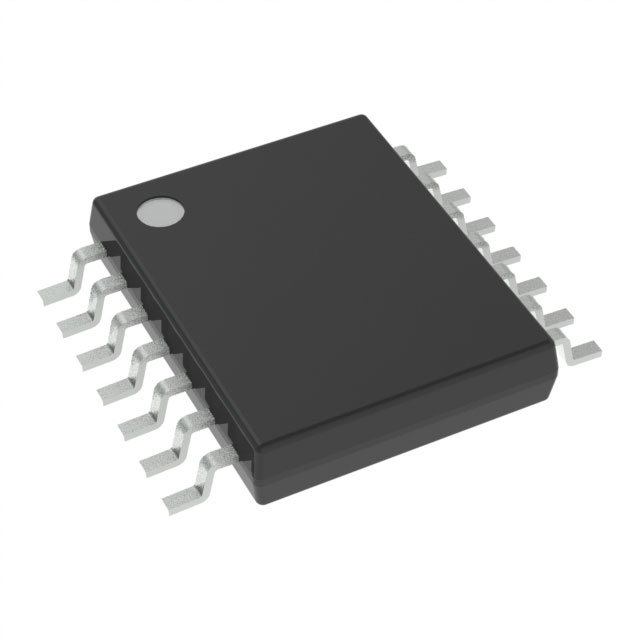

• Package / Case 14-TSSOP (0.173", 4.40mm Width)
• Mounting Type Surface Mount
• Logic Type NAND Gate
• Operating Temperature -40°C ~ 85°C
• Voltage - Supply 2V ~ 6V
• Current - Output High, Low -, 5.2mA
• Number of Inputs 2
• Supplier Device Package 14-TSSOP
• Input Logic Level - High 1.5V ~ 4.2V
• Input Logic Level - Low 0.5V ~ 1.8V
• Max Propagation Delay @ V, Max CL 23ns @ 6V, 50pF
• Number of Circuits 4
• Current - Quiescent (Max) 2 µA
