Technical Details

• Features Open Collector

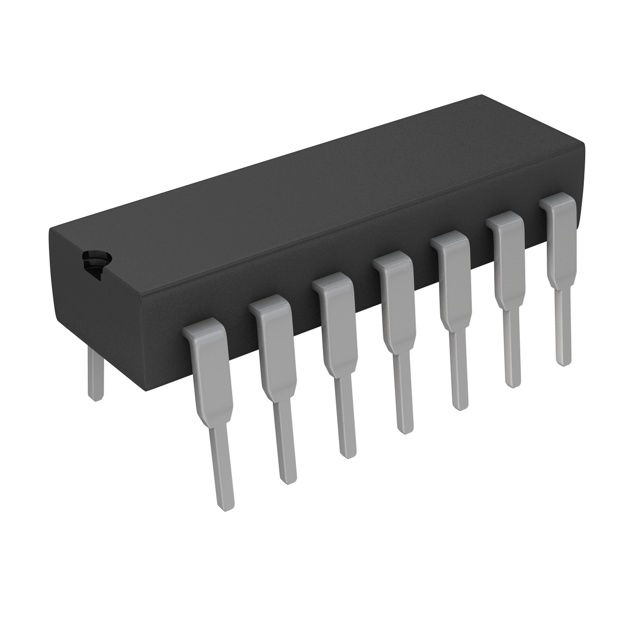

• Package / Case 14-DIP (0.300", 7.62mm)
• Mounting Type Through Hole
• Logic Type AND Gate
• Operating Temperature 0°C ~ 70°C
• Voltage - Supply 4.5V ~ 5.5V
• Current - Output High, Low -, 8mA
• Number of Inputs 2
• Supplier Device Package 14-PDIP
• Input Logic Level - High 2V
• Input Logic Level - Low 0.8V
• Max Propagation Delay @ V, Max CL 54ns @ 5V, 50pF
• Number of Circuits 4
