- Product Model AD5625RBCPZ-R2
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC DAC 12BIT V-OUT 10LFCSP
- Classification Digital to Analog Converters (DAC)
-
PDF
Technical Details

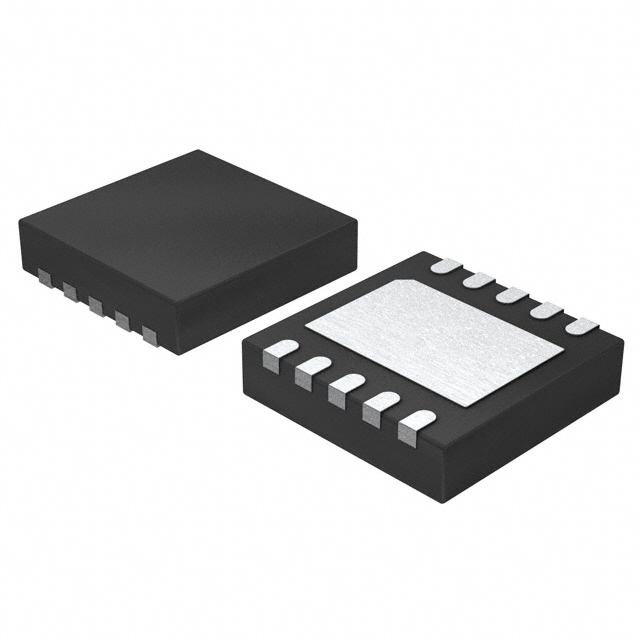

- Package / Case 10-VFDFN Exposed Pad, CSP
- Output Type Voltage - Buffered
- Mounting Type Surface Mount
- Number of Bits 12
- Data Interface I2C
- Reference Type External, Internal
- Operating Temperature -40°C ~ 105°C
- Voltage - Supply, Analog 2.7V ~ 5.5V
- Voltage - Supply, Digital 2.7V ~ 5.5V
- Settling Time 4.5µs
- Supplier Device Package 10-LFCSP-WD (3x3)
- Architecture String DAC
- Number of D/A Converters 4
- INL/DNL (LSB) ±0.5, ±0.25 (Max)
- Differential Output No
- DigiKey Programmable Not Verified
