Technical Details

• Features Load Discharge, Slew Rate Controlled

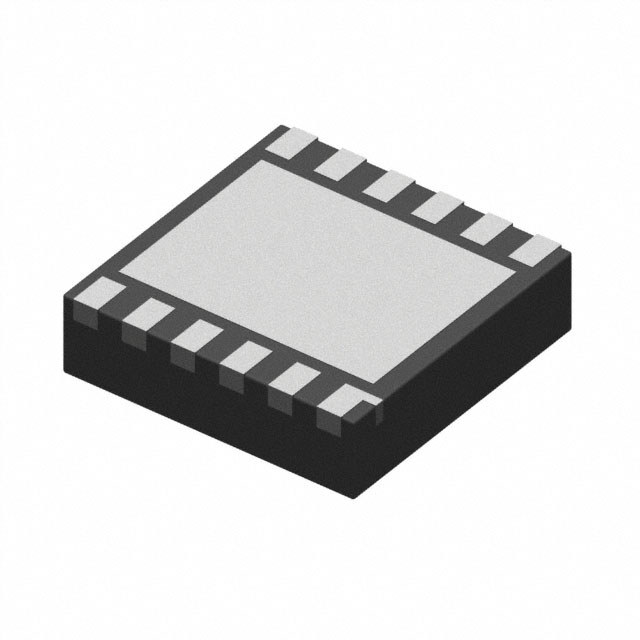

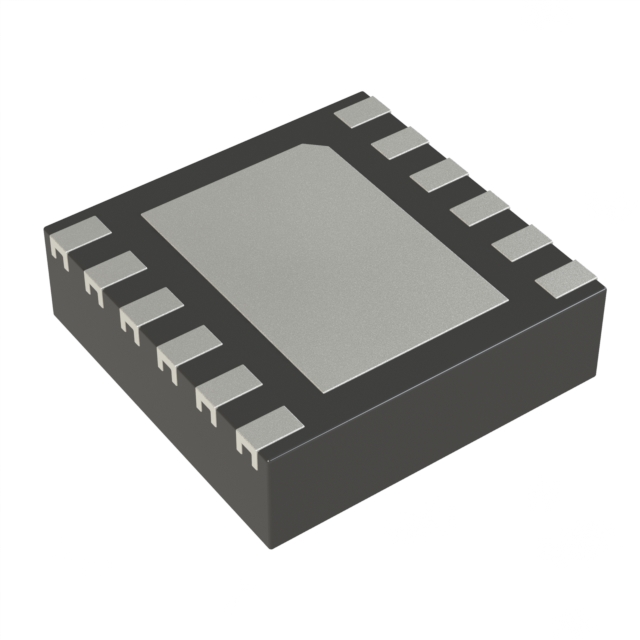

• Package / Case 12-VFDFN Exposed Pad
• Output Type N-Channel
• Mounting Type Surface Mount
• Number of Outputs 1
• Interface On/Off
• Switch Type General Purpose
• Operating Temperature -40°C ~ 85°C (TA)
• Output Configuration High Side
• Rds On (Typ) 6.7mOhm
• Input Type Non-Inverting
• Voltage - Load 1V ~ 13.5V
• Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
• Current - Output (Max) 24A
• Ratio - Input:Output 1:1
• Supplier Device Package 12-DFN (3x3)
• Fault Protection Current Limiting (Fixed), Over Temperature, Short Circuit, UVLO
