Technical Details

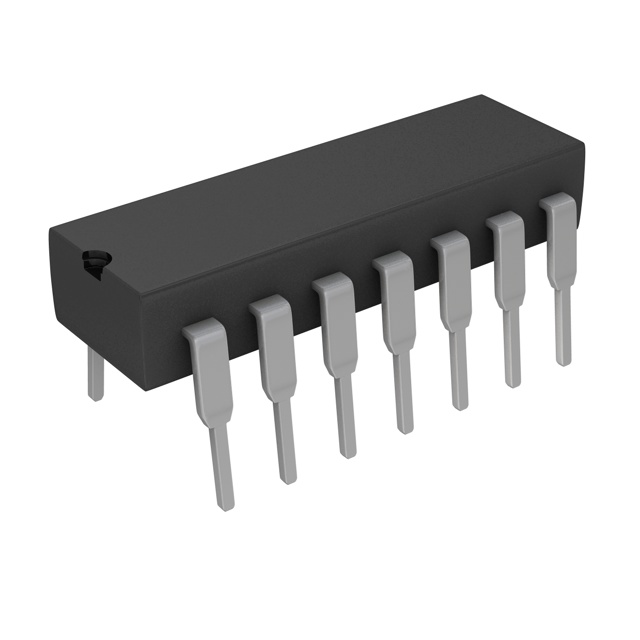

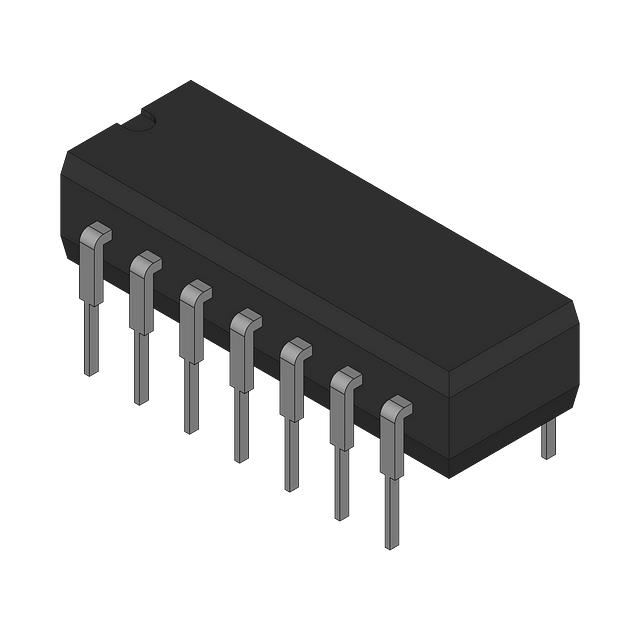

• Package / Case 14-DIP (0.300", 7.62mm)
• Mounting Type Through Hole
• Logic Type NOR Gate
• Operating Temperature -55°C ~ 125°C
• Voltage - Supply 4.5V ~ 5.5V
• Current - Output High, Low 4mA, 4mA
• Number of Inputs 3
• Supplier Device Package 14-PDIP
• Input Logic Level - High 2V
• Input Logic Level - Low 0.8V
• Max Propagation Delay @ V, Max CL 23ns @ 4.5V, 50pF
• Number of Circuits 3
• Current - Quiescent (Max) 2 µA
