- Product Model MP6543HGL-Z
- Brand MPS (Monolithic Power Systems)
- RoHS Yes
- Description 22V, 2A, THREE-PHASE POWER STAGE
- Classification Motor Drivers, Controllers
-
PDF
Technical Details

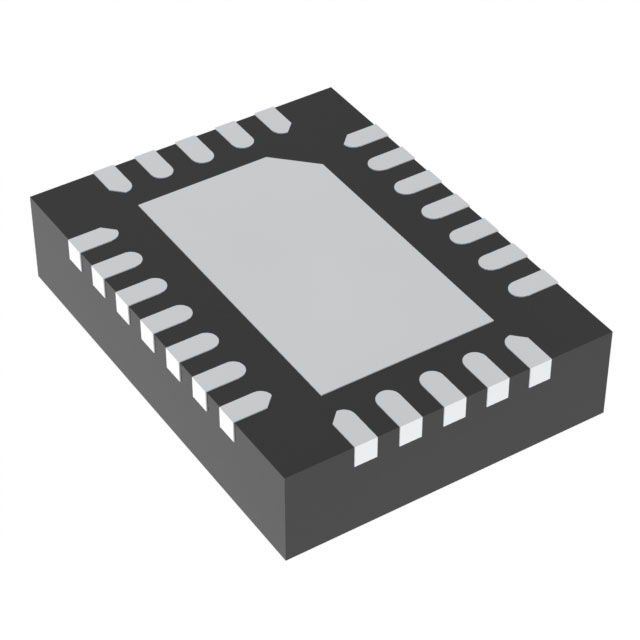

- Package / Case 24-VFQFN Exposed Pad
- Mounting Type Surface Mount
- Function Driver - Fully Integrated, Control and Power Stage
- Current - Output 2A
- Interface PWM
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration Half Bridge (3)
- Voltage - Supply 3V ~ 22V
- Applications Brushless DC (BLDC)
- Technology NMOS
- Supplier Device Package 24-QFN (3x4)
- Motor Type - Stepper Multiphase
- Motor Type - AC, DC Brushless DC (BLDC)
