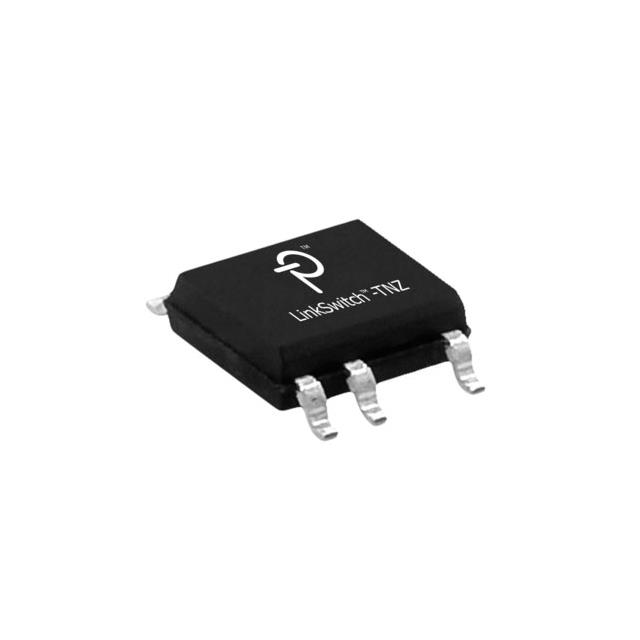

- Product Model LNK3317D-TL
- Brand Power Integrations
- RoHS Yes
- Description IC OFFLINE SWITCH MULT TOP 8SO
- Classification AC DC Converters, Offline Switches
-
PDF
Technical Details
- Package / Case 8-SOIC (0.154", 3.90mm Width), 7 Leads
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Duty Cycle 69%
- Frequency - Switching 66kHz
- Internal Switch(s) Yes
- Voltage - Breakdown 725V
- Output Isolation Isolated
- Topology Buck, Buck-Boost, Flyback
- Supplier Device Package SO-8C
- Fault Protection Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
- Voltage - Start Up 18 V
- Control Features EN, Soft Start
- Power (Watts) 12 W
