- Product Model TLE94108ESXUMA1
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC HALF BRIDGE DRIVER 24TSDSO
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Charge Pump

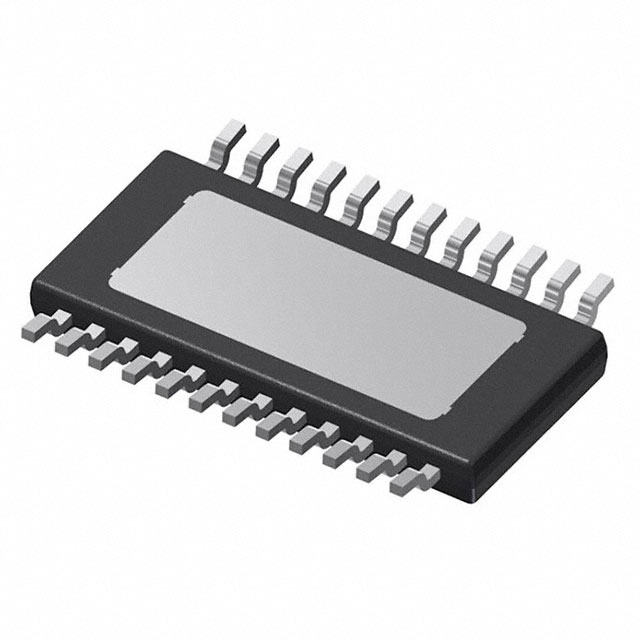

- Package / Case 24-TSSOP (0.154", 3.90mm Width) Exposed Pad
- Mounting Type Surface Mount
- Interface Logic, PWM, SPI
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Half Bridge (8)
- Voltage - Supply 3V ~ 5.5V
- Rds On (Typ) 1.3Ohm LS, 1.3Ohm HS
- Applications DC Motors, General Purpose
- Voltage - Load 5.5V ~ 20V
- Supplier Device Package PG-TSDSO-24
- Fault Protection Current Limiting, Over Temperature, Short Circuit
- Load Type Inductive, Resistive
