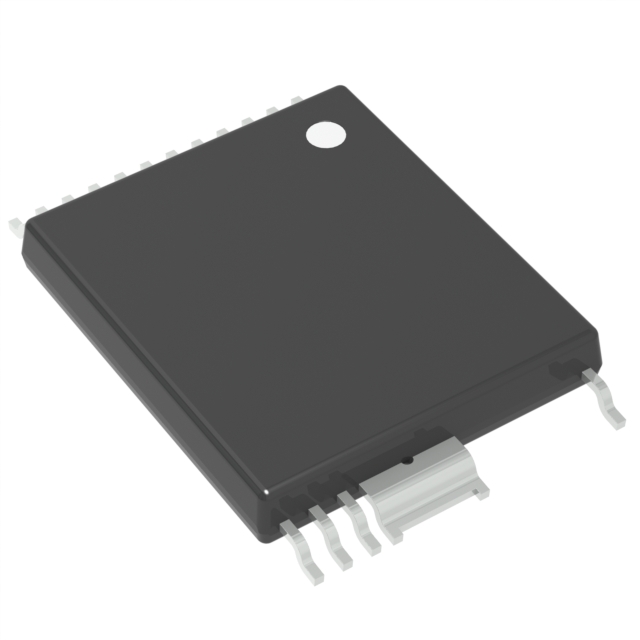

- Product Model INN3996CQ-TL
- Brand Power Integrations
- RoHS Yes
- Description IC OFFLINE SW FLBACK INSOP-24D
- Classification AC DC Converters, Offline Switches
-
PDF
Technical Details
- Package / Case 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- Frequency - Switching 110kHz
- Internal Switch(s) Yes
- Voltage - Breakdown 900V
- Output Isolation Isolated
- Topology Flyback
- Voltage - Supply (Vcc/Vdd) 30V ~ 925V
- Supplier Device Package InSOP-24D
- Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
- Control Features EN, Soft Start
- Power (Watts) 30 W
