- Product Model AOZ5317NQI
- Brand Alpha and Omega Semiconductor, Inc.
- RoHS Yes
- Description 30V 60A QFN5X5 DRMOS POWER STAGE
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Bootstrap Circuit, Diode Emulation, Status Flag

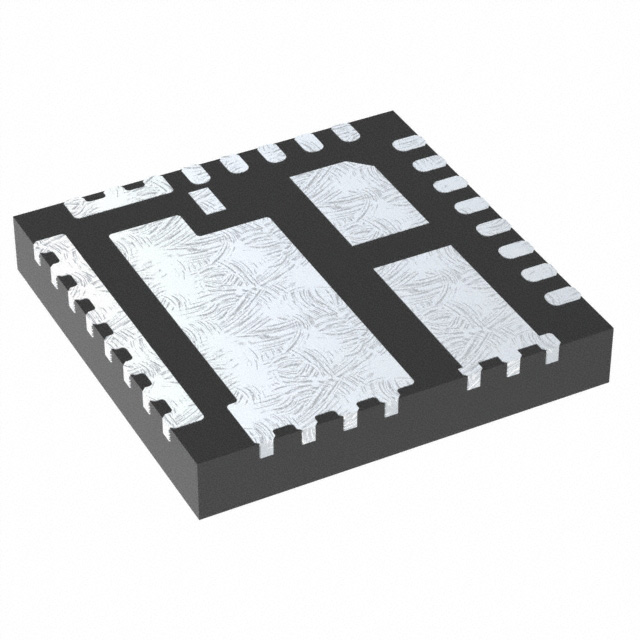

- Package / Case 31-PowerVFQFN Module
- Mounting Type Surface Mount
- Interface PWM
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Half Bridge
- Voltage - Supply 4.5V ~ 5.5V
- Applications Synchronous Buck Converters
- Current - Output / Channel 60A
- Current - Peak Output 120A
- Technology DrMOS
- Voltage - Load 2.5V ~ 25V
- Supplier Device Package 31-QFN (5x5)
- Fault Protection Over Temperature, Shoot-Through, UVLO
- Load Type Inductive, Capacitive
