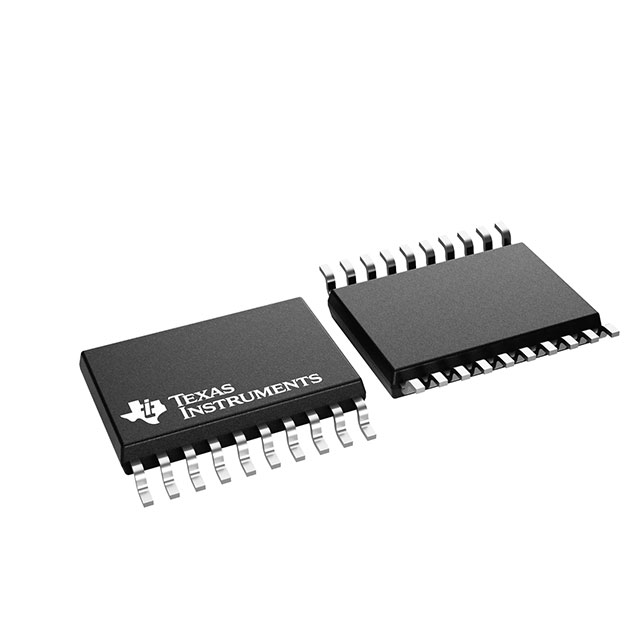

- Product Model DRV8300DRGER
- Brand Texas Instruments
- RoHS No
- Description 100-V MAX SIMPLE 3-PHASE GATE DR
- Classification Gate Drivers
Technical Details
- Package / Case 24-VFQFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- Voltage - Supply 5V ~ 20V
- Input Type Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap) 105 V
- Supplier Device Package 24-VQFN (4x4)
- Rise / Fall Time (Typ) 12ns, 12ns
- Channel Type 3-Phase
- Driven Configuration High-Side and Low-Side
- Number of Drivers 3
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2V
- Current - Peak Output (Source, Sink) 750mA, 1.5A
- DigiKey Programmable Not Verified
