- Product Model MAX20446BATG/V+
- Brand Maxim Integrated / Analog Devices
- RoHS Yes
- Description IC LED DRV CTRL PWM 120MA 24TQFN
- Classification LED Drivers
-
PDF
Technical Details

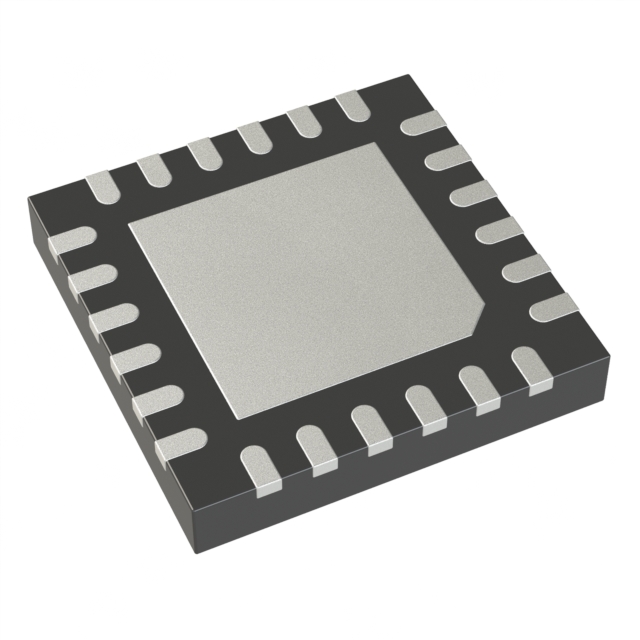

- Package / Case 24-WFQFN Exposed Pad
- Voltage - Output 52V
- Mounting Type Surface Mount
- Number of Outputs 6
- Frequency 400kHz ~ 2.2MHz
- Type DC DC Controller
- Operating Temperature -40°C ~ 125°C (TA)
- Applications Backlight, Central Information Displays, Infotainment Displays, Instrument Clusters
- Current - Output / Channel 120mA
- Internal Switch(s) Yes
- Topology Step-Up (Boost), SEPIC
- Supplier Device Package 24-TQFN (4x4)
- Dimming Analog, I2C, PWM
- Voltage - Supply (Min) 4.5V
- Voltage - Supply (Max) 36V
- Grade Automotive
- Qualification AEC-Q100
Related Products

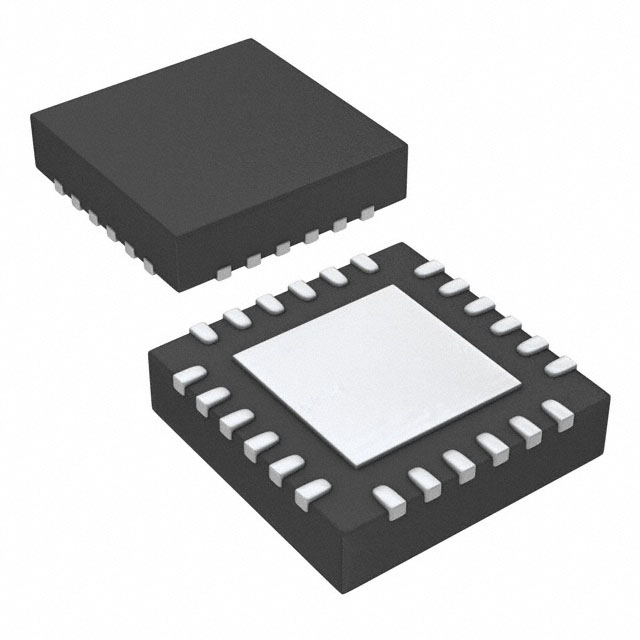

IC LED DRVR RGLTR PWM 85MA 24QFN
Inventory: 9000

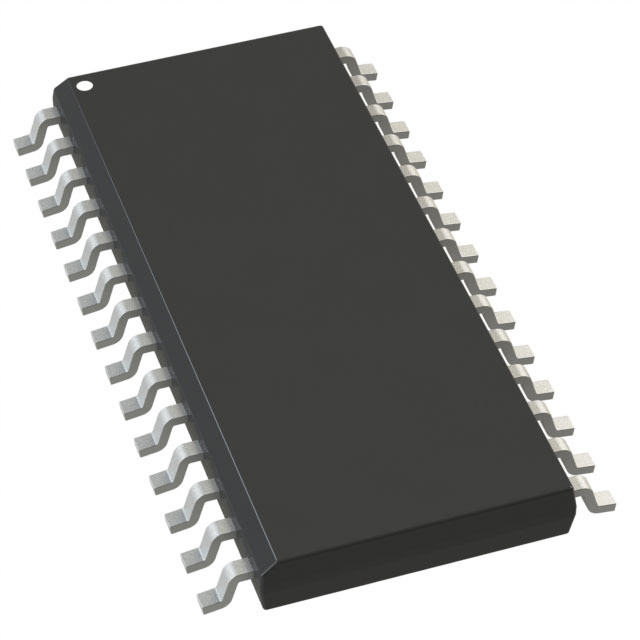

IC LED DRVR RGLTR I2C 28TSSOP
