- Product Model DRV8718SQRVJRQ1
- Brand Texas Instruments
- RoHS No
- Description IC HALF BRIDGE DRVR 62MA 56VQFN
- Classification Full Half-Bridge (H Bridge) Drivers
Technical Details
- Features Charge Pump

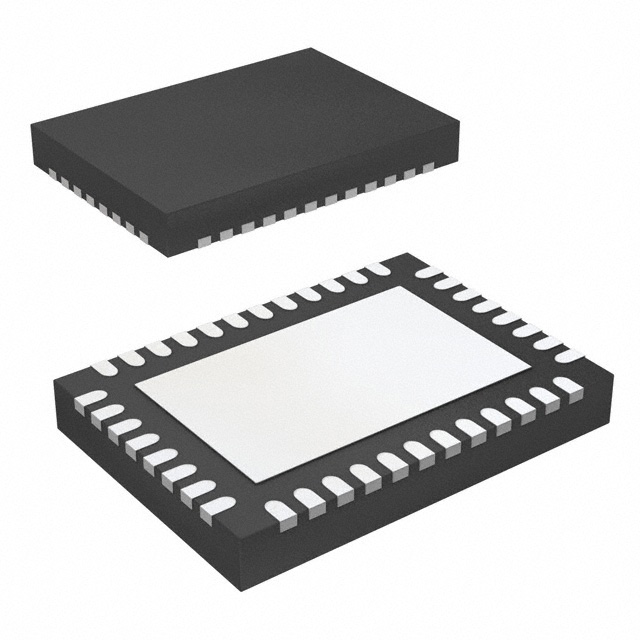

- Package / Case 56-VFQFN Exposed Pad
- Mounting Type Surface Mount, Wettable Flank
- Interface Logic, PWM, SPI
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Half Bridge
- Voltage - Supply 3V ~ 5.5V
- Rds On (Typ) 4mOhm
- Applications DC Motors, General Purpose
- Current - Output / Channel 62mA
- Current - Peak Output 62mA
- Technology Power MOSFET
- Voltage - Load 3V ~ 5.5V
- Supplier Device Package 56-VQFN (8x8)
- Fault Protection Over Current, Over Voltage, Shoot-Through
- Load Type Capacitive and Resistive
- Grade Automotive
- Qualification AEC-Q100
