Technical Details

• Features Status Flag

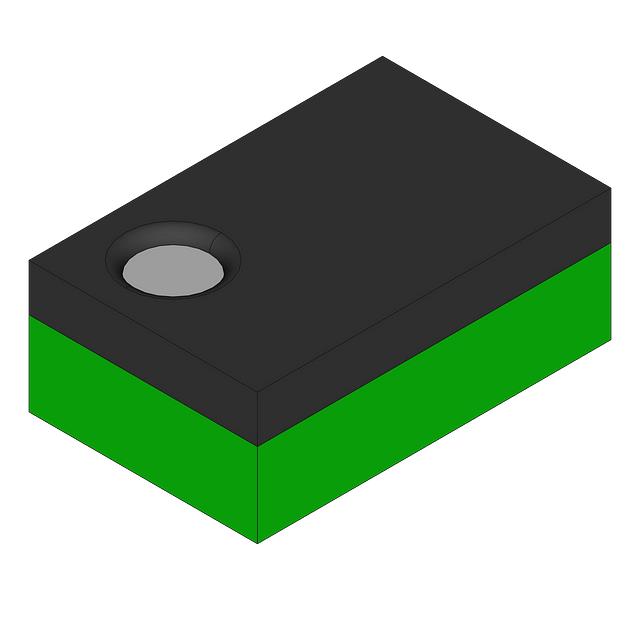

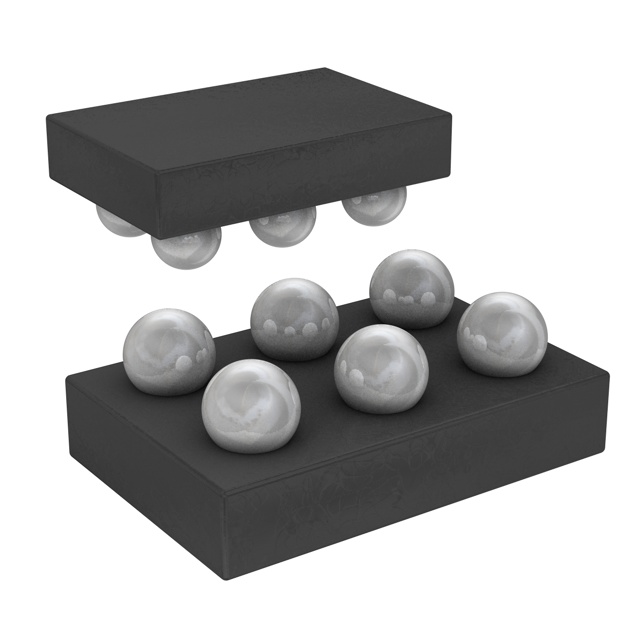

• Package / Case 6-UFBGA, WLCSP
• Output Type P-Channel
• Mounting Type Surface Mount
• Number of Outputs 1
• Interface On/Off
• Switch Type General Purpose
• Operating Temperature -40°C ~ 85°C (TA)
• Output Configuration High Side
• Rds On (Typ) 55mOhm
• Input Type Non-Inverting
• Voltage - Load 1.8V ~ 5.5V
• Voltage - Supply (Vcc/Vdd) Not Required
• Current - Output (Max) 1.5A
• Ratio - Input:Output 1:1
• Supplier Device Package 6-WLCSP (0.96x1.66)
• Fault Protection Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
