Technical Details

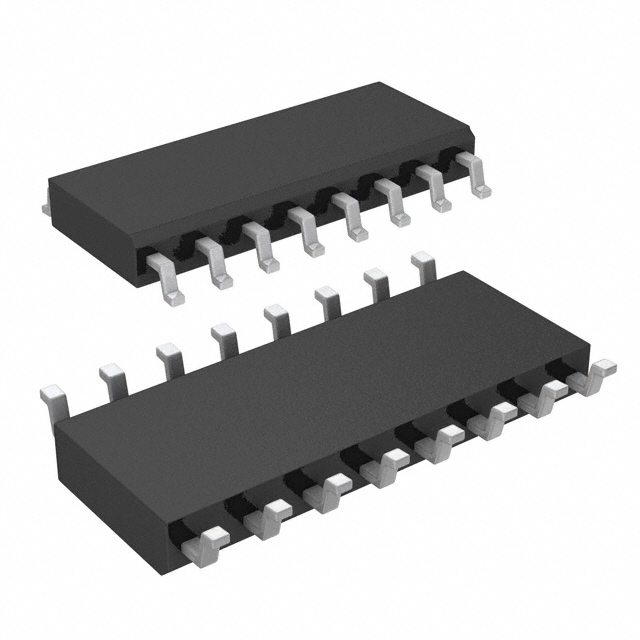

• Package / Case 16-SOIC (0.154", 3.90mm Width)
• Mounting Type Surface Mount
• Operating Temperature 0°C ~ 70°C (TA)
• On-State Resistance (Max) 45Ohm
• Supplier Device Package 16-SOIC
• Voltage - Supply, Single (V+) 10V ~ 30V
• Voltage - Supply, Dual (V±) ±4.5V ~ 20V
• Charge Injection 10pC
• Crosstalk -90dB @ 1MHz
• Switch Circuit SPDT
• Multiplexer/Demultiplexer Circuit 2:1
• Channel-to-Channel Matching (ΔRon) 500mOhm
• Switch Time (Ton, Toff) (Max) 150ns, 100ns
• Channel Capacitance (CS(off), CD(off)) 12pF, 12pF
• Current - Leakage (IS(off)) (Max) 500pA
• Number of Circuits 2
