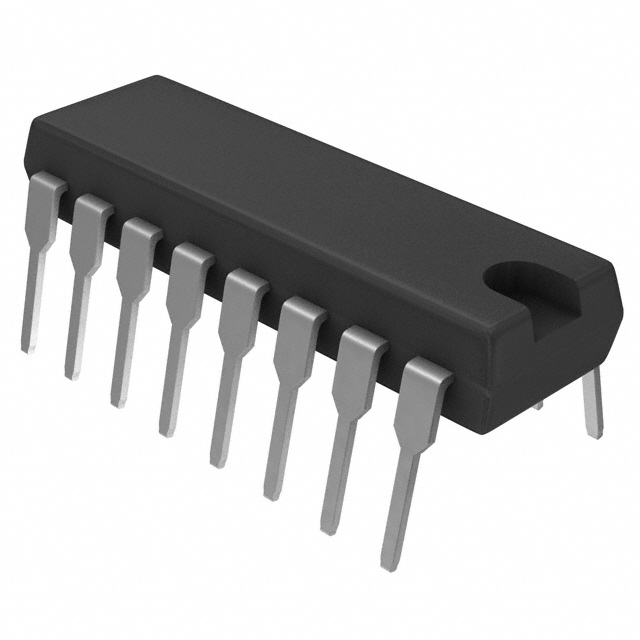

- Product Model MX7224KN+
- Brand Maxim Integrated / Analog Devices
- RoHS Yes
- Description IC DAC 8BIT V-OUT 18DIP
- Classification Digital to Analog Converters (DAC)
-
PDF
Inventory:2781
Technical Details
- Package / Case 18-DIP (0.300", 7.62mm)
- Output Type Voltage - Buffered
- Mounting Type Through Hole
- Number of Bits 8
- Data Interface Parallel
- Reference Type External
- Operating Temperature 0°C ~ 70°C
- Voltage - Supply, Analog 11.4V ~ 16.5V, -5V
- Voltage - Supply, Digital 14.25V ~ 15.75V
- Settling Time 8µs
- Supplier Device Package 18-PDIP
- Architecture R-2R
- Number of D/A Converters 1
- INL/DNL (LSB) ±1 (Max), ±1 (Max)
- Differential Output No
- DigiKey Programmable Not Verified
